Ford TW-5 Tests

Ford TW-5 tractor photo
1983 - 1986
TW Series
Row-Crop tractor
Nebraska Tractor Test 1514

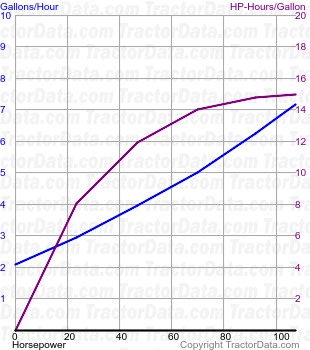

TW-5 fuel use from test 1514
Nebraska Tractor Test 1514
Diesel 16-speed 2WD
April 26 - May 16, 1984
Link: Nebraska Tractor Test 1514 file
PTO performance
Power at rated engine speed:105.74 hp
78.9 kW
Fuel use:7.1 gal/hour
26.9 l/hour
Power at rated PTO speed:96.83 hp
72.2 kW
Fuel use:6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power:92.62 hp
69.1 kW
Fuel use:7.0 gal/hour
26.5 l/hour
Gear 5L used for power test.
Max pull:12,249 lbs
5556 kg
Gear 2L used for pull test.
