    Long 560

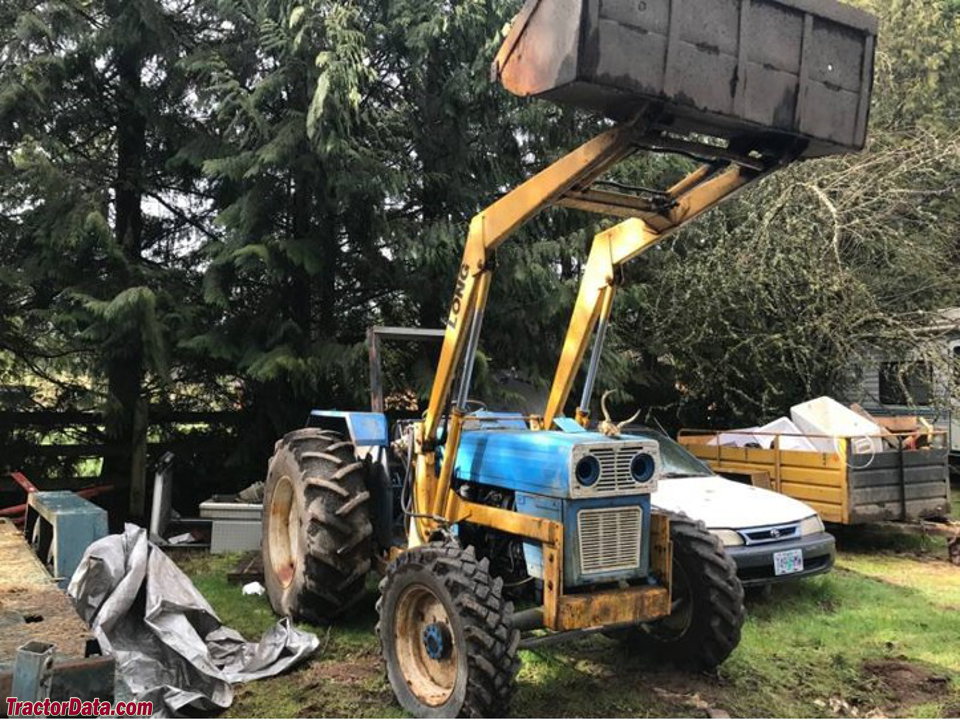

    Long 560 tractor photo
    1975 - ????
    Farm/Agricultural tractor
    Previous model:Long 550






    Production:

    Distributor:Long
    Manufacturer:UTB/Universal
    Factory:Brasov, Romania


    Long 560 Engine:

       UTB/Universal 3.1L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:14.25 gal [53.9 L]
    Hydraulic system:4.5 gal [17.0 L]


    3-Point Hitch:

    Rear Type:I
    Rear lift:2,660 lbs [1206 kg]


    Power Take-off (PTO):

    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:81.25 inches [206 cm]
    Weight:4570 to 9110 pounds
    Front tire:7.50-16
    Rear tire:14.9-28
    full dimensions and tires ...


    560 Serial Numbers:


    - Serial numbers unknown -



    Long 560 Power:

    Engine:60 hp [44.7 kW]
    Drawbar (tested):46.73 hp [34.8 kW]
    PTO (tested):53.61 hp [40.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Differential lock:pedal with auto-disengagement
    Steering:manual
     power optional
    Brakes:independent contracting band
    Cab:Open operator station.


    Hydraulics:

    Capacity:4.5 gal [17.0 L]
    Pressure:2133 psi [147.1 bar]
    Total flow:5.75 gpm [21.8 lpm]


    Battery:

    Number:1
    Cold-cranking amps:100
     135 (optional)
    Volts:12
