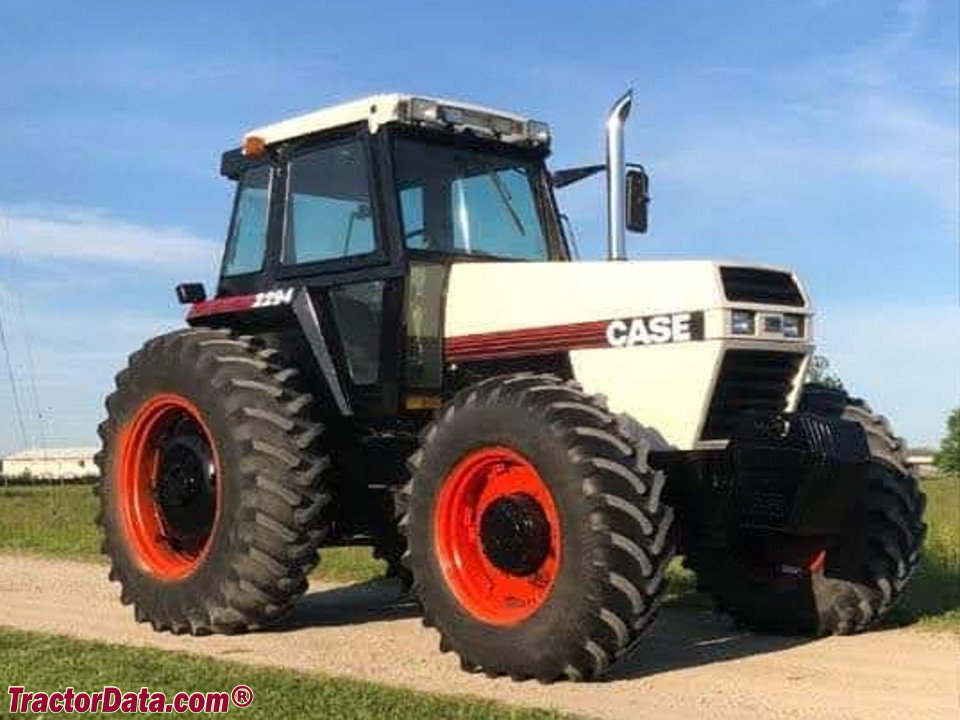

J.I. Case 2294
|
|
| Production | |
| Manufacturer: | J.I. Case |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| J.I. Case 2294 Power | |
| Engine: | 154 hp 114.8 kW |
| Drawbar (claimed): | 116 hp 86.5 kW |
| PTO (claimed): | 130 hp 96.9 kW |
| Drawbar (tested): | 115.35 hp 86.0 kW |
| PTO (tested): | 131.97 hp 98.4 kW |
| J.I. Case 2294 Engine | |
| Case 8.3L 6-cyl diesel | |
 Engine details ... |
| Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Four-post ROPS. Silent Guardian cab optional with air-conditioning. |
| Transmission: | 12-speed three-speed power shift |
 Transmission details ... | |
| Photos | |
 | |
 J.I. Case 2294 photos... | |
| Capacity | |
| Fuel: | 65 gal 246.0 L |
| 25 gal 94.6 L *Optional auxiliary tank | |
| Hydraulic system: | 25 gal 94.6 L |
| Hydraulics | |
| Type: | closed center |
| Capacity: | 25 gal 94.6 L |
| Pressure: | 2250 psi 155.1 bar |
| Valves: | 2 to 4*3 only with 4WD |
| Pump flow: | 23 gpm 87.1 lpm |
| Steering flow: | 8 gpm 30.3 lpm |
| Steering press.: | 2000 psi 137.9 bar |
| Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 6600 lbs 2993 kg |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic |
| Rear RPM: | 540/1000 |
| Dimensions & Tires | |
| Wheelbase: | 104 inches 264 cm |
| 110 inches 279 cm *Optional long wheelbase. | |
| Weight: | 11070 to 14390 pounds |
| Front tire: | 11.00x16 |
| Rear tire: | 18.4-38 (2WD) |
 Full dimensions and tires ... | |
| 2294 Serial Numbers | |
| Location: | Inside cab or on right-front frame |
| 1984: | 9931808 |
| 1985: | 9938113 |
| 1986: | 9941577 |
| 1987: | 9945448 |
| 1988: | 9949350 |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 72 |
| 105*Optional | |
| Battery volts: | 12 |
