CaseIH STX330

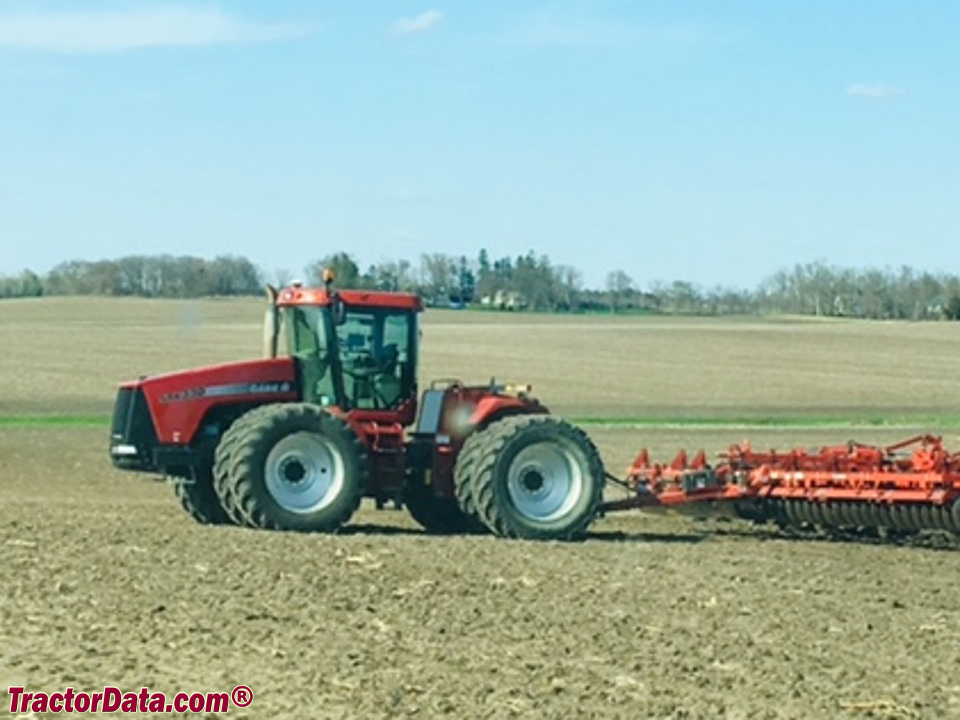

CaseIH STX330 tractor photo
2006 - 2007
Steiger STX Series
Four-wheel Drive (4WD) tractor
STX325
Series:STX280STX330STX380
Steiger 330
Production
Manufacturer:CaseIH
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
CaseIH STX330 Power
Engine:330 hp
246.1 kW
PTO (claimed):269 hp
200.6 kW
Drawbar (tested):258.63 hp
192.9 kW
PTO (tested):323.31 hp
241.1 kW
power test details ...
CaseIH STX330 Engine
CDC 8.9L 6-cyl diesel
Fuel tank:200 gal
757.0 L
Engine details ...
Mechanical
Chassis:4x4 articulated 4WD
Final drives:inboard 3-planetary
 inboard 4-planetary (STX330 HD)
Steering:hydrostatic power
Brakes:integrated hydraulic wet disc
Cab:Surveyor cab standard with air-conditioning. Optional luxury cab with leather trim and seating.
Transmissions:16-speed full power shift
 24-speed fully synchronized
Transmission details ...
Photos
No photos of the CaseIH STX330 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:pressure flow compensated
Valves:4
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm (High capacity)
 90 gpm
340.7 lpm (TwinFlow)
Tractor hitch
Rear Type:IVN/III
Rear lift (at 24"/610mm):15669 lbs
7107 kg
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000 (1.75)
Dimensions & Tires
Wheelbase:139 inches
353 cm
Weight:32295 lbs
14649 kg
Front tire:480/80R46
Rear tire:480/80R46
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
