New Holland T7040

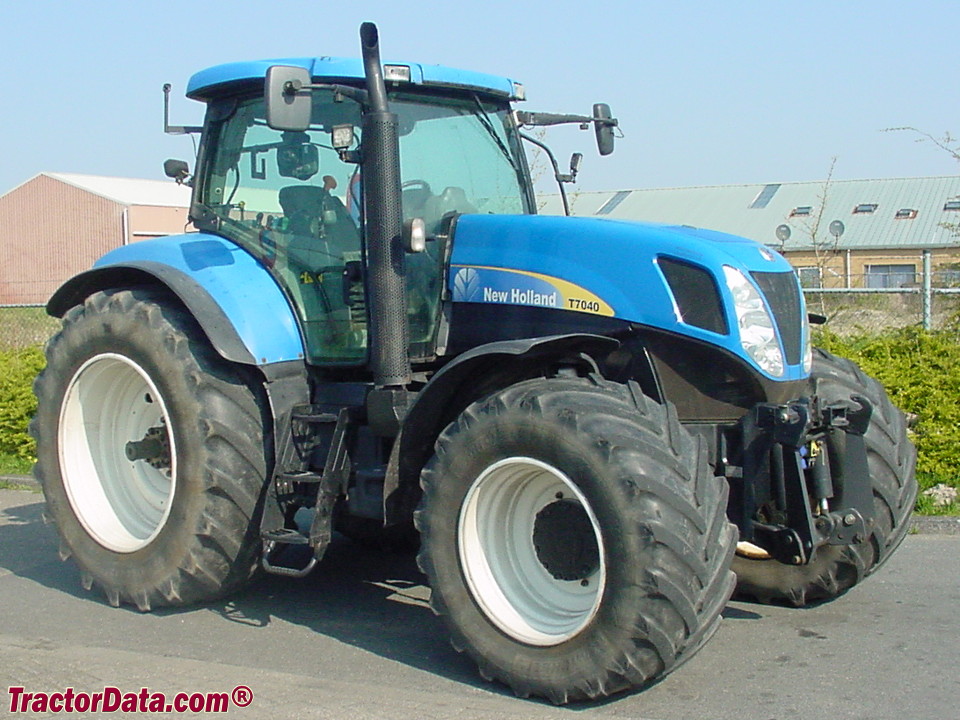

New Holland T7040 tractor photo
2007 - 2011
T7000 Series
Row-Crop tractor
TM175
Series:T7030T7040T7050
T7.235
Production
Manufacturer:New Holland
Type:Row-Crop tractor
Factory:Basildon, England
The T7040 is available with optional TerraGlide or SuperSteer front axles. The TerraGlide axle provides 4.13 inches of travel to improve traction and ride quality. The SuperSteer axle pivots 19 degrees (in addition to the 46 degrees of wheel pivot) to allow for quicker turning.
New Holland T7040 Power
Engine:180 hp
134.2 kW
PTO (claimed):150 hp
111.9 kW
Drawbar (tested):132.7 hp
99.0 kW
PTO (tested):179.8 hp
134.1 kW
power test details ...
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic rear differential lock
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Trailer brakes:hydraulic optional
Cab:cab with A/C
Transmissions:18-speed full power shift
 19-speed full power shift
 continuously variable transmission (CVT)
 28-speed
Transmission details ...
Capacity
Fuel:116.2 gal
439.8 L
 107 gal
405.0 L (late)
Hydraulic system:26.5 gal
100.3 L
Hydraulics
Type:closed center load sensing (CCLS)
Capacity:26.5 gal
100.3 L
Rear valves:3 to 5
Pump flow:32 gpm
121.1 lpm
 39.6 gpm
149.9 lpm (optional MegaFlow)
Total flow:49 gpm
185.5 lpm
 56.6 gpm
214.2 lpm (optional)
Steering flow:17.6 gpm
66.6 lpm
Tractor hitch
Rear Type:3/2
Control:electronic lower-link draft control
Rear lift (at ends):19,060 lbs
8645 kg
Rear lift (at 24"/610mm):12,787 lbs
5800 kg
Front lift:7,981 lbs
3620 kg
 6,019 lbs
2730 kg (SuperSteer axle)
Power Take-off (PTO)
Rear PTO:independent electro-hydraulic
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000
 540E/1000
 1000 (1.75)
Dimensions & Tires
Wheelbase:113.5 inches
288 cm
 117.2 inches
297 cm (SuperSteer axle)
Weight:15708 to 17595 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
 200 (optional)
Battery CCA:1300
Battery volts:12
