New Holland T7.235
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Row-Crop tractor | |
| Built in Basildon, England | |
| New Holland T7.235 Engine | |
| FPT 6.7L 6-cyl diesel | |
| Fuel tank | 104 gal 393.6 L |
| Exhaust fluid (DEF) | 13 gal 49.2 L |
 Engine details ... | |
| New Holland T7.235 Transmissions | |
| 18-speed full power shift | |
| 19-speed full power shift | |
| continuously-variable transmission (CVT) | |
 Transmission details ... |
| New Holland T7.235 Power | |
| Engine (gross) | 185 hp 138.0 kW |
| Engine (max) | 234 hp 174.5 kW |
| PTO (claimed) | 150 hp 111.9 kW |
| Drawbar (tested) | 147.6 hp 110.1 kW |
| PTO (tested) | 187.5 hp 139.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Brakes | hydraulic wet disc |
| engine exhaust brake OptOptional | |
| Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional | |
| Horizon cab standard with air-conditioning. Intellisteer optional | |
| Photos | |
 | |
 New Holland T7.235 photos... | |
| Hydraulics | |
| Type | closed center load sensing |
| Rear valves | 3 to 5 |
| Mid valves | 3 OptOptional |
| Pump flow | 32 gpm 121.1 lpm |
| 39.5 gpmOptOptional 149.5 lpm | |
| Steering flow | 17 gpm 64.3 lpm |
| Tractor hitch | |
| Rear Type | III/II |
| Control | electronic draft control |
| Rear lift (at ends) | 12787 lbs 5800 kg |
| Rear lift (at 24"/610mm) | 10746 lbs 4874 kg |
| Rear Arms | flex link ends |
| Front Hitch | optional |
| Front lift (at ends) | 8344 lbs 3784 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| 540E/1000 | |
| 1000/1000E | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 113.5 inches 288 cm |
| 117.2 inches (SuperSteer) 297 cm | |
| Weight | 15322 to 16094 pounds |
| Rear tire | 20.8R42 |
 Full dimensions and tires ... | |
| New Holland T7.235 attachments | |

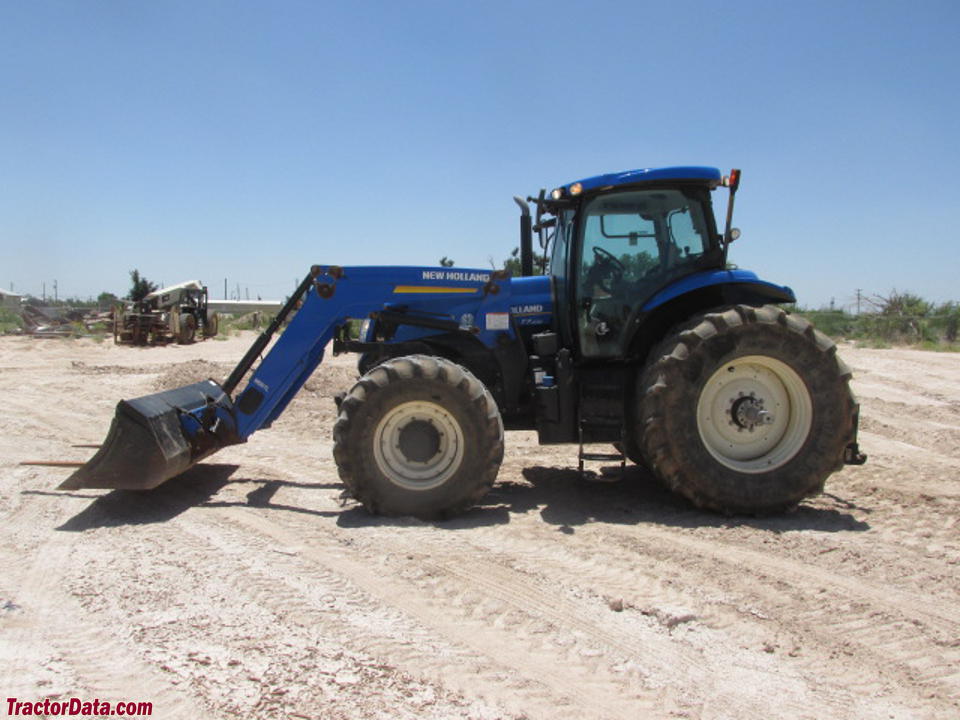

| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| 200 OptOptional | |
| Battery CCA | 1300 |
| Battery volts | 12 |
| Battery AH | 176 |
