Tractors > John Deere > 9430T

John Deere 9430T - tests

John Deere 9430T tractor photo
2007 - 2011   9030 Series
Agricultural Crawler tractor
Previous model:John Deere 9420T
Next model:John Deere 9460RT
Series next:John Deere 9530T
more John Deere 9430T specifications...






OCED Tractor Test 1943:

Nebraska summary:619

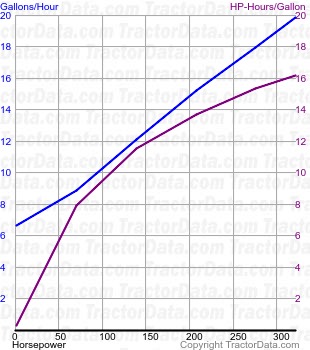

9430T fuel use from test 619
Test Date:October 1 - 14, 2008
Type:Diesel 18-speed crawler
PTO power (max):367.82 hp [274.3 kW]
PTO fuel use (max):21.8 gal/hour [82.5 l/hour]
PTO power (rated engine speed):320.78 hp [239.2 kW]
PTO fuel use (engine speed):19.9 gal/hour [75.3 l/hour]
PTO power (rated PTO speed):365.51 hp [272.6 kW]
PTO fuel use (PTO speed):21.7 gal/hour [82.1 l/hour]
Drawbar power (max):328.03 hp [244.6 kW]
Drawbar fuel use (max):21.8 gal/hour [82.5 l/hour]
Drawbar pull (max):45,384 lbs [20586 kg]
Max pull gear:1
Test report:PDF file
