Tractors > John Deere > 9330

John Deere 9330 - tests

John Deere 9330 tractor photo
2007 - 2011   9030 Series
Four-wheel Drive (4WD) tractor
Previous model:John Deere 9320
Next model:John Deere 9410R
Series next:John Deere 9430
Series back:John Deere 9230
more John Deere 9330 specifications...






OCED Tractor Test 1941:

Nebraska summary:617

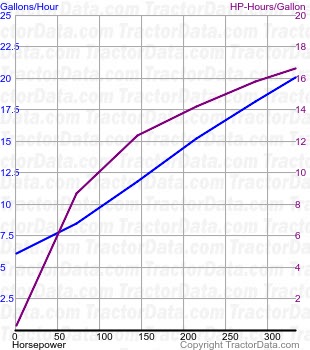

9330 fuel use from test 617
Test Date:October 6 - November 5, 2008
Type:Diesel 24-speed 4WD
PTO power (max):385.04 hp [287.1 kW]
PTO fuel use (max):22.4 gal/hour [84.8 l/hour]
PTO power (rated engine speed):332.97 hp [248.3 kW]
PTO fuel use (engine speed):20.0 gal/hour [75.7 l/hour]
PTO power (rated PTO speed):375.92 hp [280.3 kW]
PTO fuel use (PTO speed):21.9 gal/hour [82.9 l/hour]
Drawbar power (max):302.16 hp [225.3 kW]
Drawbar fuel use (max):19.5 gal/hour [73.8 l/hour]
Drawbar pull (max):36,887 lbs [16731 kg]
Max pull gear:A2-Low
Test report:PDF file
