Deutz-Allis 8050 - transmission

Deutz-Allis 8050 tractor photo
1985 - 1988
Row-Crop tractor
Previous model:Allis Chalmers 8050
Next model:Deutz-Allis 9150
Series next:Deutz-Allis 8070
Series back:Deutz-Allis 8030
more Deutz-Allis 8050 specifications...





Note: the Deutz-Allis model 8050 is the same as the Allis Chalmers 8050. The following data is from the 8050 listing.


Transmission:

Transmission:Allis-Chalmers Power Director
Type:partial power shift
Gears:20 forward and 4 reverse
Oil capacity:29.6 qts [28.0 L]
Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.
Speeds:With 18.4x38 rear tires.

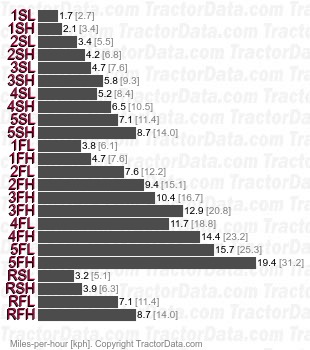

8050 Power Director partial power shift speeds


Transmission:

Transmission:Power Shift
Type:Allis-Chalmers
Gears:12 forward and 2 reverse
Oil capacity:29.6 qts [28.0 L]
Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.
Speeds:With 18.4x38 rear tires.

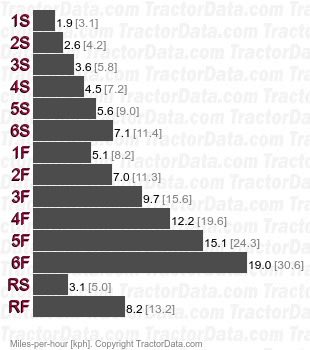

8050 Power Shift Allis-Chalmers speeds
