John Deere 1850

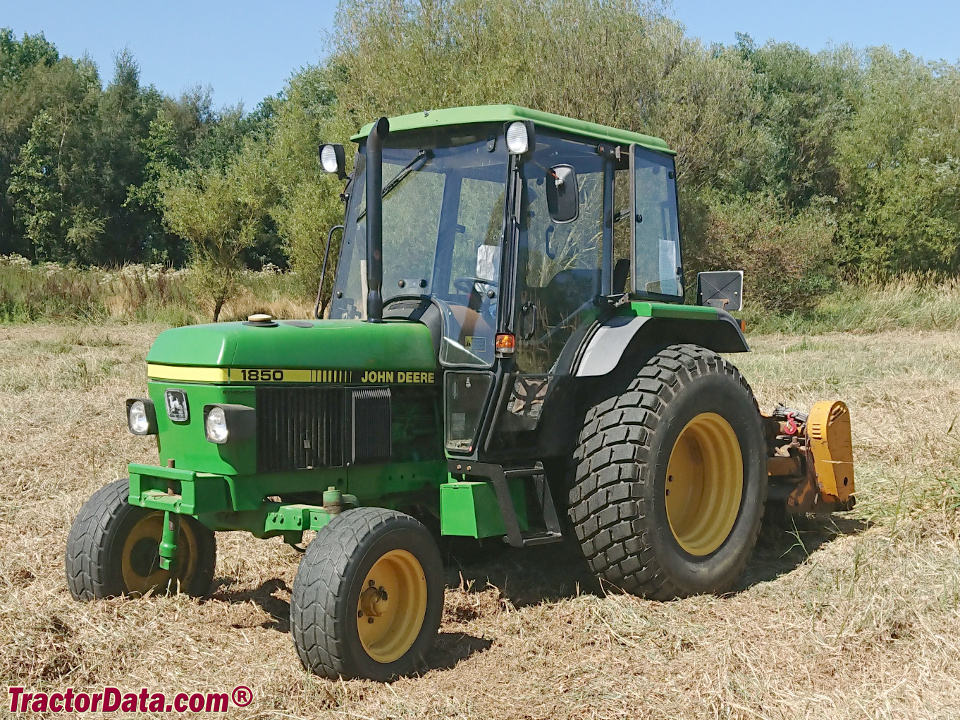

John Deere 1850 tractor photo
1986 - 1994
Utility tractor
Series:175018501950
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Mannheim, Baden-W├╝rttemberg, Germany
John Deere 1850 Power
Engine (net):55 hp
41.0 kW
PTO (claimed):49.6 hp
37.0 kW
John Deere 1850 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank:20.6 gal
78.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Steering:power
Brakes:hydraulic disc
Cab:ROPS. Optional MC1 cab, or CC2 cab after 1990.
Transmissions:8-speed synchromesh
 16-speed two-speed power shift
 12-speed creeper
Transmission details ...
Photos
No photos of the John Deere 1850 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:closed-center constant pressure.
Pressure:2756 psi
190.0 bar
Pump flow:11.6 gpm
43.9 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift (at 24"/610mm):2810 lbs
1274 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540
 540/1000
Engine RPM:540@2070
Dimensions & Tires
Wheelbase:80.7 inches
204 cm
Weight:5997 to 6991 pounds
Front tire:7.50-16
2WD Rear tire:16.9-30
Full dimensions and tires ...
Electrical
Ground:negative
Charging amps:55
Batteries:2
Battery volts:12
Battery AH:55
