Farmall 404

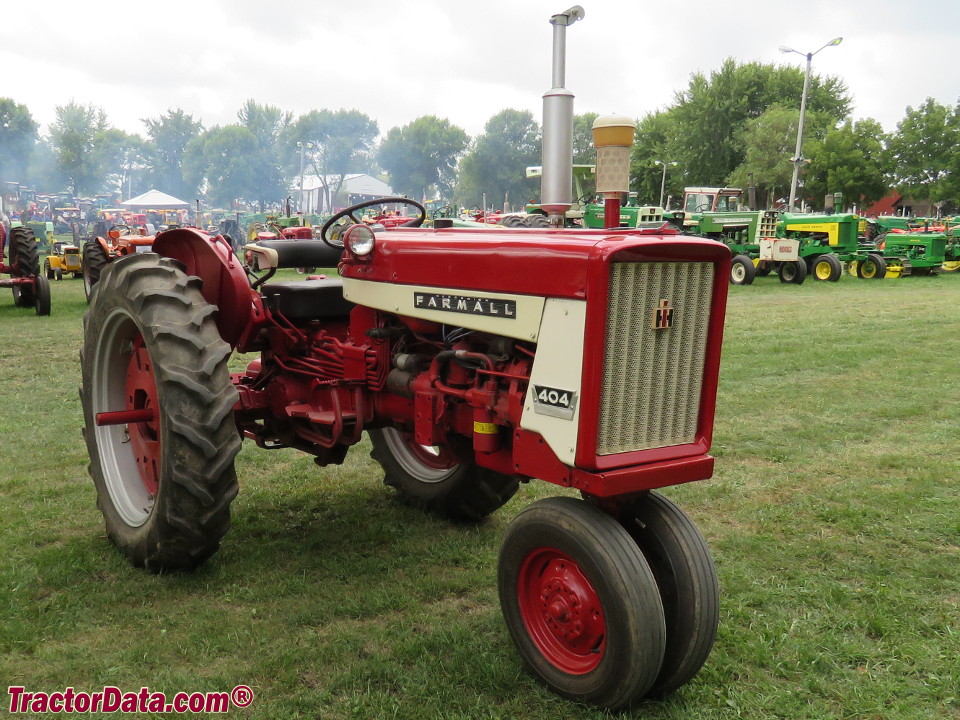

Farmall 404 tractor photo
1961 - 1968
Series:404504
Production
Manufacturer:Farmall (a part of International Harvester)
Factory:Louisville, Kentucky, USA
Total built:2440
Variants
Farmall 404:row-crop chassis
IH 404:utility chassis
2404:industrial
Farmall 404 Power
Drawbar (claimed):33.4 hp
24.9 kW (gas)
 29 hp
21.6 kW (LP)
PTO (claimed):36.7 hp
27.4 kW (gas)
 33 hp
24.6 kW (LP)
Plows:2-3
Drawbar (tested):32.97 hp
24.6 kW
PTO (tested):36.70 hp
27.4 kW
power test details ...
Farmall 404 Engines
International Harvester 2.2L 4-cyl gasoline
International Harvester 2.2L 4-cyl LP-gas
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
 power (optional)
Brakes:differential mechanical disc
Cab:Open operator station. Optional deluxe deep-cushion seat with padded backrest.
Transmissions:4-speed
 8-speed
 4-speed manual shuttle
Transmission details ...
Capacity
Fuel:16.2 gal
61.3 L (gas)
 19 gal
71.9 L (LP-gas)
Hydraulic system:5 gal
18.9 L
Hydraulics
Type:live
Capacity:5 gal
18.9 L
Valves:1 or 2
Total flow:4.5 gpm
17.0 lpm
 9.3 gpm
35.2 lpm (optional)
Tractor hitch
Rear Type:I
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540
Dimensions & Tires
Wheelbase:82.2 inches
208 cm (tricycle)
 87.8 inches
223 cm (wide front)
Weight:3400 to 4115 pounds
Front tire:5.00-15
Rear tire:11.2-36
Full dimensions and tires ...

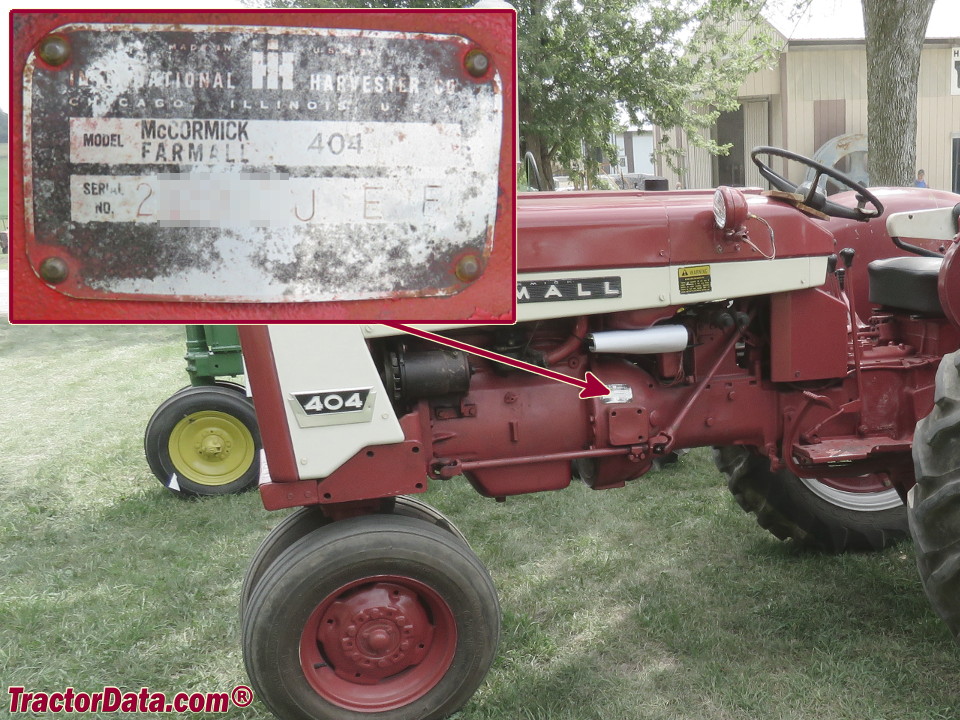

404 Serial Numbers
1961:501
1962:826
1963:1936
1964:2259
1965:2568
1966:2790
1967:2980
1968:3170

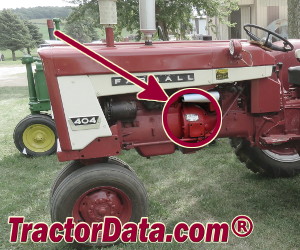

how to read serial numbers...

Belt Pulley
Diameter:11 inches
27 cm
RPM:948
Speed:2,730 ft/min
832.10 meters/min
