Farmall 404 Transmission


Farmall 404 tractor photo
1961 - 1968
Row-Crop tractor
Series map:
404
504
40.8hp*
51.1hp*
*Estimated engine power for comparison only.
Transmission options
4-speed gear
8-speed
4-speed manual shuttle
Transmission
Typegear
Gears4 forward and 1 reverse
Clutch9-inch dry disc
Oil capacity20 qts
18.9 L
Speeds
With 11.2-36 rear tires.
404  gear speeds

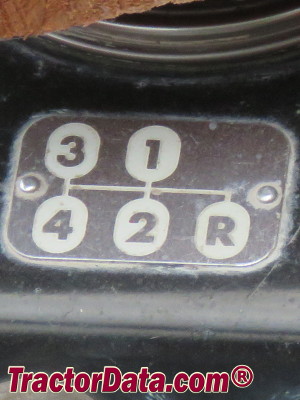

Shift Pattern
Farmall 404 transmission controls
Transmission
TransmissionDual-Range
Gears8 forward and 2 reverse
Clutch9-inch dry disc
Oil capacity20 qts
18.9 L
Add high range to basic four-speed transmission.
Speeds
With 11.2-36 rear tires.
404 Dual-Range  speeds
Transmission
Typemanual shuttle
Gears4 forward and reverse
Clutch9-inch dry disc
Oil capacity20 qts
18.9 L
Speeds
With 11.2-36 rear tires.
404  manual shuttle speeds
