Tractors > Kubota > L3000

Kubota L3000

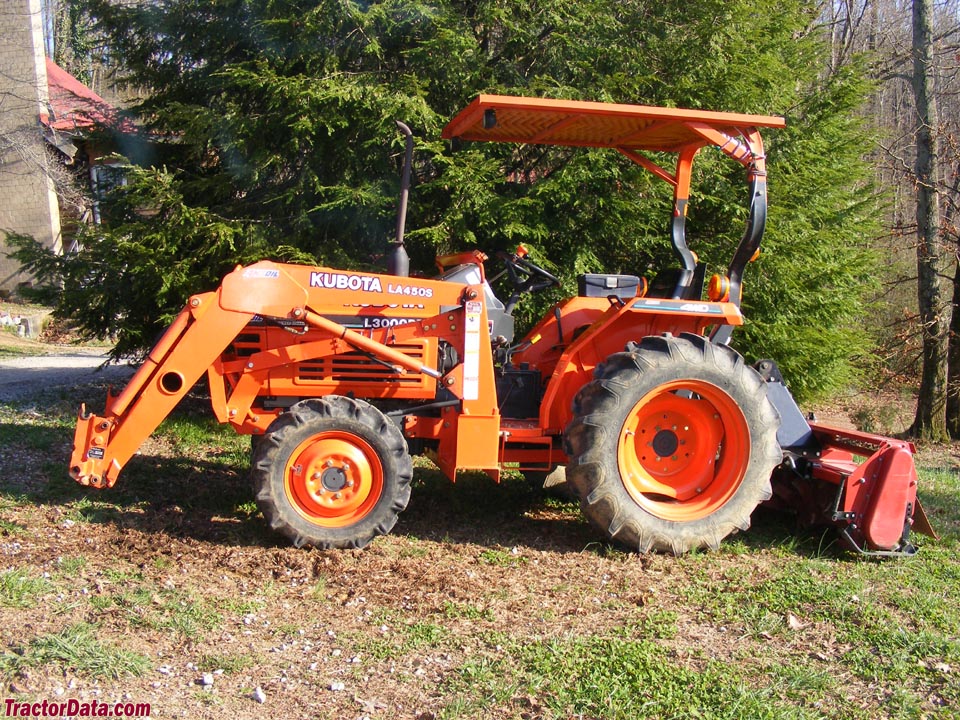

Kubota L3000 tractor photo
2000 - 2003   Standard L Series
Compact Utility tractor
Series next:Kubota L4300
Series back:Kubota L2600






Production:

Manufacturer:Kubota


Variants:

L3000F:2WD
L3000DT:4WD


Kubota L3000 Engine:

   Kubota 1.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:8.2 gal [31.0 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):1,985 lbs [900 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540


Dimensions & Tires:

Wheelbase:62.4 inches [158 cm] (2WD)
 62.8 inches [159 cm] (4WD)
Weight:2183 to 2425 pounds
Front tire:5.00-15
Rear tire:11.2-24
full dimensions and tires ...


Kubota L3000 attachments:

 front-end loader
 backhoe
all L3000 attachments ...


L3000 Serial Numbers:


- Serial numbers unknown -



Kubota L3000 Power:

Engine (gross):32.1 hp [23.9 kW]
PTO (claimed):27.5 hp [20.5 kW]


Mechanical:

Chassis:4x2 2WD (L3000F)
 4x4 MFWD 4WD (L3000DT)
Steering:power
Brakes:wet disc
Cab:Two-post ROPS.


Hydraulics:

Type:open center
Pressure:2205 psi [152.0 bar]
Total flow:6.9 gpm [26.1 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Cold-cranking amps:490
Volts:12
