CaseIH MX245 Magnum

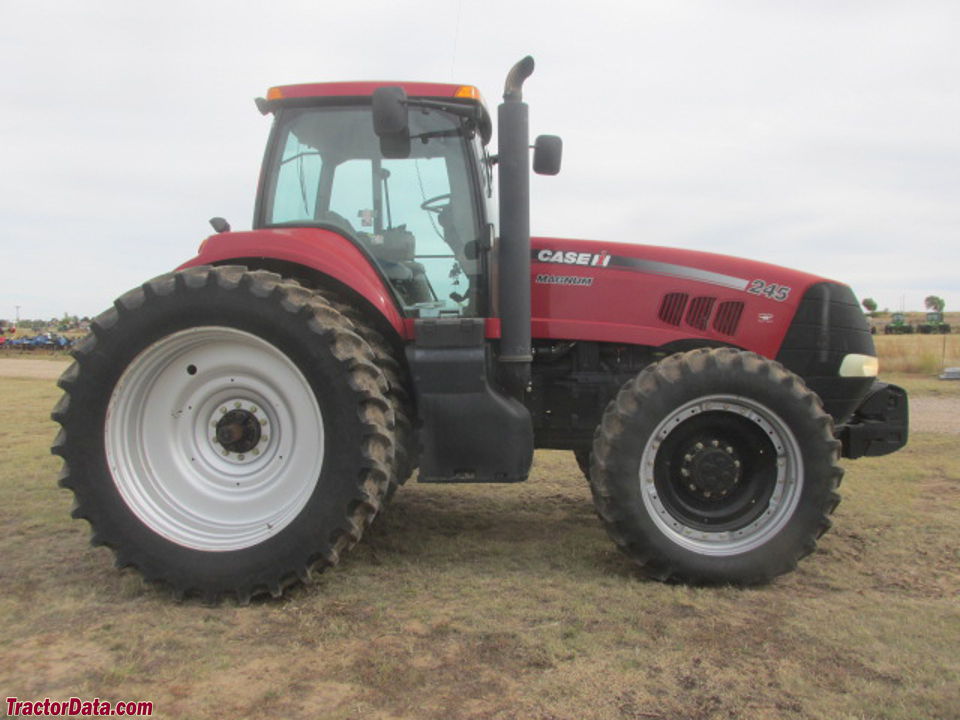

CaseIH MX245 Magnum tractor photo
2006 - 2007   Magnum Series
Row-Crop tractor
Previous model:CaseIH MX230
Next model:CaseIH Magnum 245
Series next:CaseIH MX275
Series back:CaseIH MX215






Production:

Manufacturer:CaseIH
Factory:Racine, Wisconsin, USA


CaseIH MX245 Engine:

   CNH 8.3L 6-cyl diesel
full engine details ...


Capacity:

Fuel:180 gal [681.3 L]
Hydraulic system:45.5 gal [172.2 L]


3-Point Hitch:

Rear Type:III
Rear lift:13960 lbs [6332 kg]
 15970 lbs [7243 kg] *Optional


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:118.3 inches [300 cm]
Weight:21185 lbs [9609 kg]
full dimensions and tires ...


MX245 Serial Numbers:


how to read serial numbers...



CaseIH MX245 Power:

Engine:248 hp [184.9 kW]
PTO (claimed):200 hp [149.1 kW]
Drawbar (tested):172.67 hp [128.8 kW]
PTO (tested):203.97 hp [152.1 kW]
power test details ...


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:independent hydraulic wet disc
Cab:Cab standard.


Hydraulics:

Type:pressure flow compensating
Capacity:45.5 gal [172.2 L]
Valves:3 to 5
Total flow:38.6 gpm [146.1 lpm]
 58 gpm [219.5 lpm] *Optional


Electrical:

Ground:negative
Charging amps:150
 175*Optional


Battery:

Cold-cranking amps:2000
Volts:12
