CaseIH MX245 Magnum Tests

CaseIH MX245 Magnum tractor photo
2006 - 2007
Magnum Series
Row-Crop tractor
Series:MX215MX245 MagnumMX275
Magnum 245
OCED Tractor Test 566

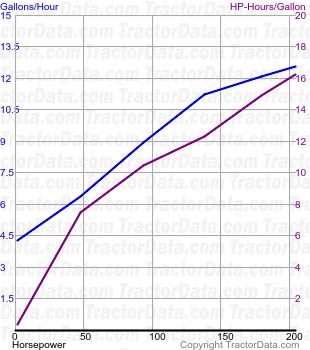

MX245 Magnum fuel use from test 1899
OCED Tractor Test 566
Diesel 19 speed 4WD
May 1 - 18, 2007
Link: OCED Tractor Test 566 file
PTO performance
Power at rated engine speed:203.97 hp
152.1 kW
Fuel use:12.5 gal/hour
47.3 l/hour
Power at rated PTO speed:242.84 hp
181.1 kW
Fuel use:14.7 gal/hour
55.6 l/hour
Drawbar performance
Max power:172.67 hp
128.8 kW
Fuel use:12.5 gal/hour
47.3 l/hour
Gear 7 used for power test.
Max pull:20129 lbs
9130 kg
Gear 5 used for pull test.
