Massey Ferguson 4355


Massey Ferguson 4355 tractor photo
2001 - 2003
4300 Series
Utility tractor
Series map:
4345
4355
4360
90.0hp
100.0hp
106.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Built in Coventry, England
Massey Ferguson 4355 Engine
Perkins 4.0L 4-cyl diesel
Cab Fuel tank33.6 gal
127.2 L
ROPS Fuel tank34.3 gal
129.8 L
Cab Fuel tank50 galOptOptional
189.3 L
ROPS Fuel tank52.8 galOptOptional
199.8 L
Engine details ...
Massey Ferguson 4355 Transmissions
12-speed gear
12-speed power shuttle
24-speed power shuttle
Transmission details ...
Massey Ferguson 4355 Power
Engine (gross)100 hp
74.6 kW
Engine (net)94 hp
70.1 kW
PTO (claimed)85 hp
63.4 kW
Drawbar (tested)65.6 hp
48.9 kW
PTO (tested)84.1 hp
62.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Hydraulics
Typeopen center
Pressure3046 psi
210.0 bar
Valves2 to 4
SCV flow10 gpm
37.9 lpm
 17.2 gpm*Combined flow
65.1 lpm
 17.4 gpm*Optional dedicated flow with power shuttle
65.9 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at 24"/610mm)3665 lbs
1662 kg
 4495 lbsOptOptional
2038 kg
Rear Armstelescopic lower links
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@1902
 1000@2000
Dimensions & Tires
Wheelbase93 inches
236 cm
Weight6211 to 8430 pounds
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps45
Cab Charging amps80
Cab Charging amps120 OptOptional
Batteries2
Battery CCA590
Battery volts12
References

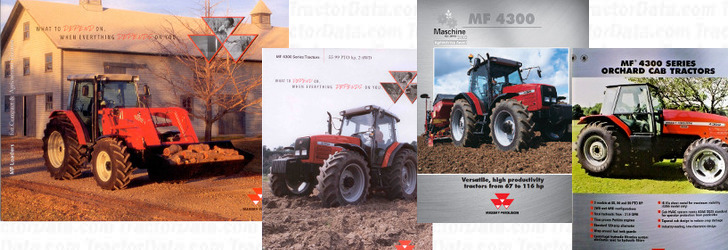

4355 references literature
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
4300 Series Tractors published in 2001, by Massey Ferguson
4300 Series Tractors published in 2002, by Massey Ferguson
MF 4300 Series Orchard Cab Tractors published in 2001, by Massey Ferguson
