Massey Ferguson 4360
| | 2001 - 2003 |
| 4300 Series | | Utility tractor |
|
Series map:
4355
4360
4365
100.0hp
106.0hp
112.0hp
| Production |
| Manufacturer | Massey Ferguson (a part of AGCO)
|
| Utility tractor |
| Built in Coventry, England |
| Massey Ferguson 4360 Power |
| Engine (gross) | 106 hp
79.0 kW
|
| Engine (net) | 100 hp
74.6 kW
|
| PTO (claimed) | 90 hp
67.1 kW
|
| Drawbar (tested) | 78.3 hp
58.4 kW
|
| PTO (tested) | 94.9 hp
70.8 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | electro-hydraulic front and rear
|
| Power steering |
| Independent hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Photos |
| No photos of the Massey Ferguson 4360 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Pressure | 3046 psi
210.0 bar
|
| Valves | 2 to 4
|
| SCV flow | 10 gpm
37.9 lpm
|
| | 17.4 gpm*Combined flow or optional dedicated flow system with power shuttle transmission.
65.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at 24"/610mm) | 4495 lbs
2038 kg
|
| | 5710 lbsOptOptional
2590 kg
|
| Rear Arms | telescopic lower links
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@1902
|
| | 1000@2000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| ROPS Charging amps | 45
|
| Cab Charging amps | 80
|
| Cab Charging amps | 120 OptOptional
|
| Batteries | 2
|
| Battery CCA | 590
|
| Battery volts | 12
|
| References |
 |

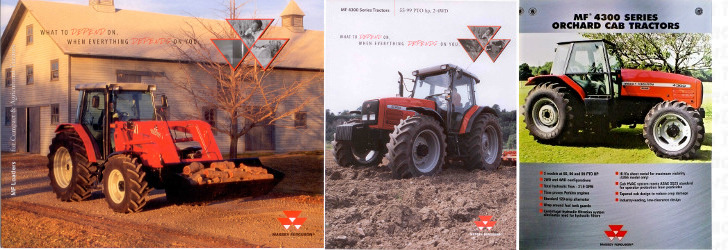

| MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson |
| 4300 Series Tractors published in 2001, by Massey Ferguson |
| MF 4300 Series Orchard Cab Tractors published in 2001, by Massey Ferguson |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 14, 2024 |
