International Harvester 824

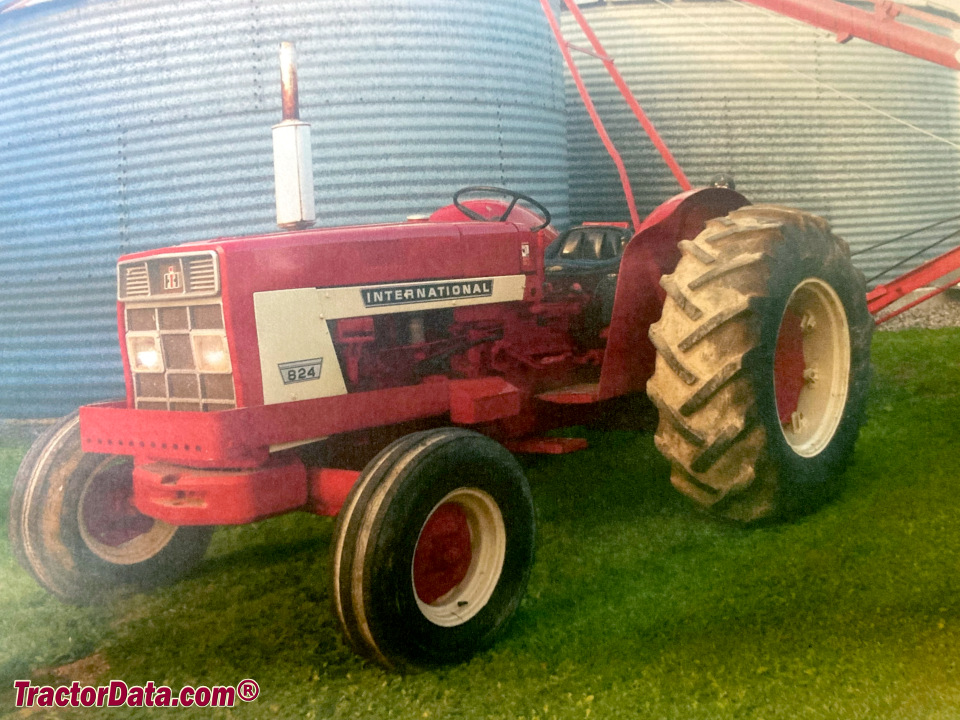

International Harvester 824 tractor photo
1971 - 1974
Model years
Utility tractor
Series back:International Harvester 724






Production:

Manufacturer:International Harvester
Factory:Neuss, Germany


International Harvester 824 Engine:

   International Harvester 3.9L 4-cyl diesel
full engine details ...


Capacity:

Fuel:18.5 gal [70.0 L]


3-Point Hitch:

Rear Type:II
Control:position and draft control
Rear lift:5953 lbs [2700 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:83.5 inches [212 cm]
Weight:6934 to 7596 pounds
Front tire:7.50-18
Rear tire:13.6-38
full dimensions and tires ...


824 Serial Numbers:


- Serial numbers unknown -



International Harvester 824 Power:

Engine:75 hp [55.9 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:dry disc
Cab:Open operator station. Cab optional.


Hydraulics:

Pump flow:7.5 gpm [28.4 lpm]


Electrical:

Charging system:Bosch generator
Charging amps:11
 16


Battery:

Number:2 (6V)
 1 (12V)
Volts:6
 12
