International Harvester 824 Transmission


International Harvester 824 tractor photo
1971 - 1974
Model year
Utility tractor
Series:724824
Transmissions overview
8-speed
12-speed partial power shift
Transmission
Transmission:partially synchronized
Gears:8 forward and 4 reverse
Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stoppped to shift range.
Speeds

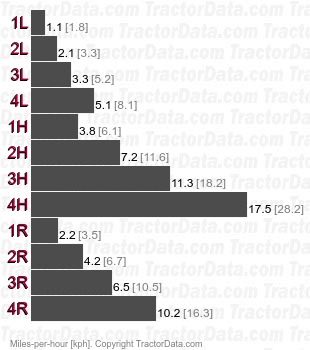

824 partially synchronized  speeds
Transmission
Transmission:Agriomatic S
Type:partial power shift
Gears:12 forward and 4 reverse
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.
Speeds

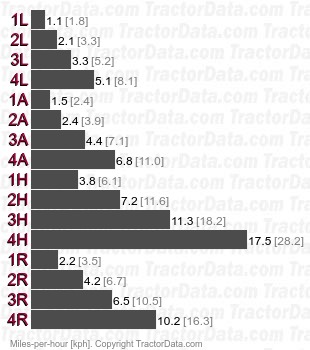

824 Agriomatic S partial power shift speeds
