Tractors > International Harvester > 824

International Harvester 824 Engine



International Harvester 824 tractor photo
1971 - 1974
Model year
Utility tractor
Series map:
724
824
50.0kw
55.9kw
Engine Detail
International Harvester D-239
diesel
4-cylinder
liquid-cooled
Displacement238.65 ci
3.9 L
Bore/Stroke3.875x5.06 inches
98 x 129 mm
Power75 hp
55.9 kW
Compression16:1
Rated RPM2300
Torque190.2 lb-ft
257.9 Nm
Torque RPM1500
Firing order1-3-4-2
Starter volts12
Starter power4 hp
3.0 kW
Engine Oil

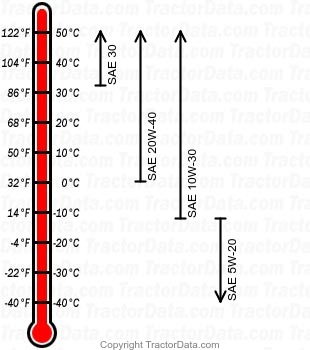

824 diesel engine oil chart
Oil capacity9.6 qts
9.1 L
Oil change200 h
