Fiat 160-90
|
|
| Production | |
| Manufacturer | Fiat |
| Row-Crop tractor | |
| Variants | |
| 160-90DT | four-wheel drive |
| 160-90 | similar Hesston model |
| Fiat 160-90 Engine | |
| Fiat-Iveco 8.1L 6-cyl diesel | |
 Engine details ... |
| Fiat 160-90 Transmissions | |
| 24-speed partial power shift | |
| 16-speed mechanical shuttle | |
 Transmission details ... |
| Fiat 160-90 Power | |
| Engine | 160 hp 119.3 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | hydraulic |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditioning. | |

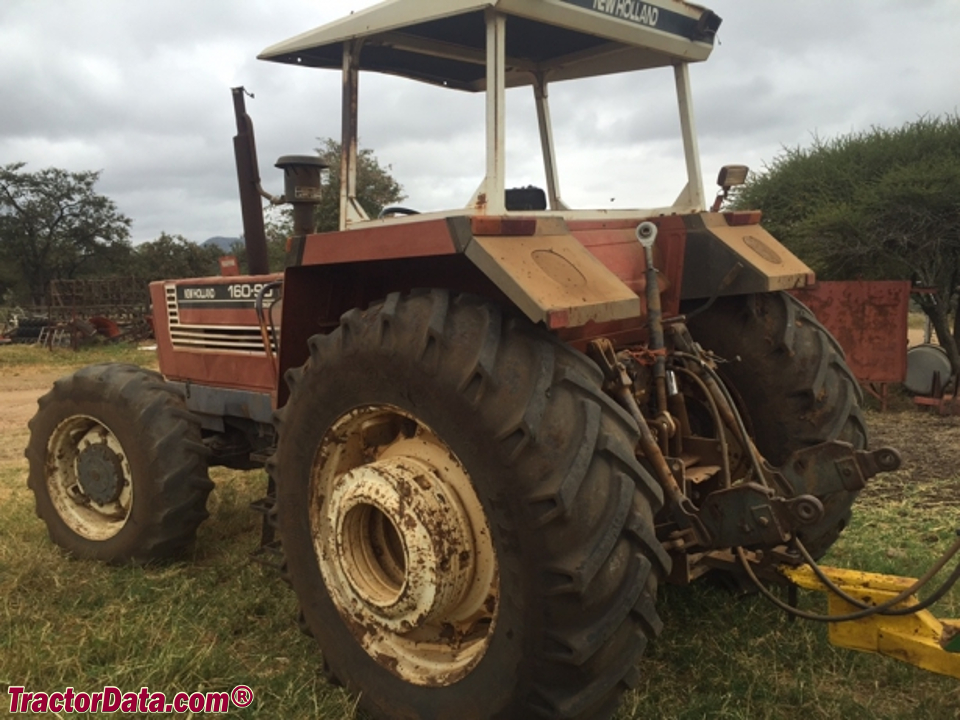

| Photos | |
 | |
 Fiat 160-90 photos... | |
| Capacity | |
| Fuel | 74 gal 280.1 L |
| Hydraulic system | 14.8 gal 56.0 L |
| Hydraulics | |
| Capacity | 14.8 gal 56.0 L |
| Valves | 3 |
| Pump flow | 14.8 gpm 56.0 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift | 14661 lbs 6650 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@1950 |
| 1000@2072 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 116.7 inches 296 cm |
| 4WD Wheelbase | 113.6 inches 288 cm |
| Weight | 17086 to 18662 pounds |
| Front tire | 11.00-16 |
| 2WD Rear tire | 23.1-34 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging system | alternator |
| Battery volts | 12 |
| Battery AH | 152 |
| References | |
 | |
| 160-90 /160-90 dt turbo PS published by Fiat | |
| 160-90 turbo published by Fiat |
