Tractors > Fiat > 55-90

Fiat 55-90

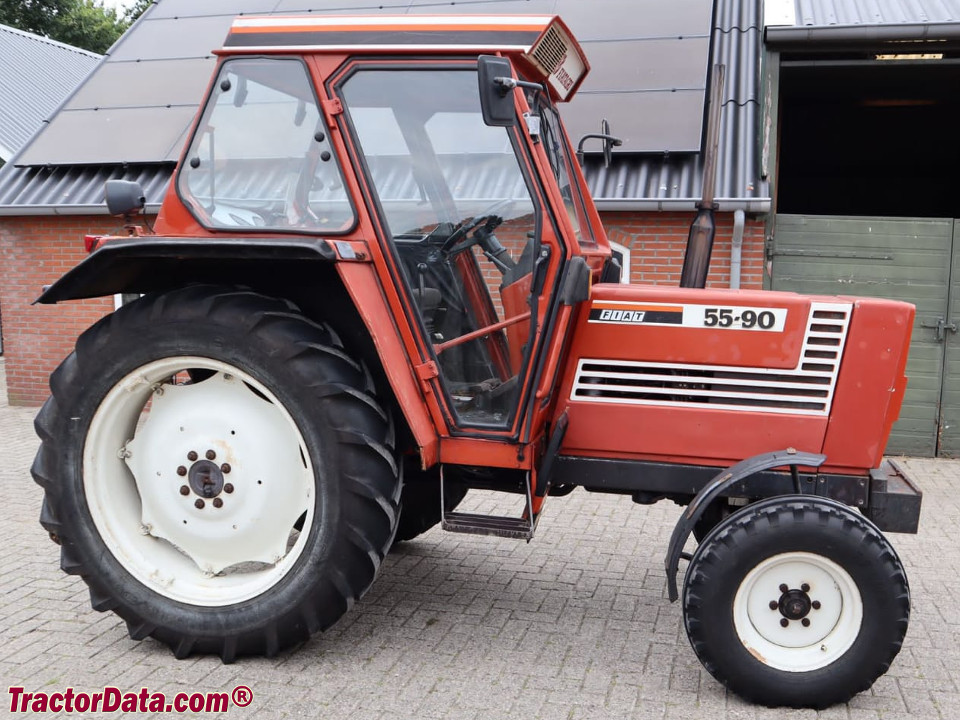

Fiat 55-90 tractor photo
1984 - 1992   90 Series
Utility tractor
Series next:Fiat 60-90






Production:

Manufacturer:Fiat


Variants:

55-90:2WD
55-90DT:4WD


Fiat 55-90 Engine:

   Fiat 2.7L 3-cyl diesel
full engine details ...


Capacity:

Fuel:24.6 gal [93.1 L]


3-Point Hitch:

Rear Type:II/I
Rear lift:6393 lbs [2899 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:280mm dry disc
Rear RPM:540
 540/1000
Engine RPM:540@2200
1000@2375


Dimensions & Tires:

2WD Wheelbase:87.8 inches [223 cm]
4WD Wheelbase:86.6 inches [219 cm]
Weight:6526 to 6923 pounds
Front tire:7.50-16
2WD Rear tire:16.9-28
full dimensions and tires ...


55-90 Serial Numbers:


- Serial numbers unknown -



Fiat 55-90 Power:

Engine:55 hp [41.0 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:hydraulic rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with heater.


Hydraulics:

Pump flow:8.9 gpm [33.7 lpm]
