| | 1984 - 1992 |
| 90 Series | | Utility tractor |
|
Series map:
55-90
60-90
41.0kw
44.7kw
| Transmission options |
| 12-speed |
| 12-speed shuttle |
| 20-speed creeper |
| Transmission |
| Gears | 12 forward and 4 reverse
|
| Clutch | 280mm dry disc
|
| Four gears (1-4) in three ranges (low, medium, high) plus reverse range. |

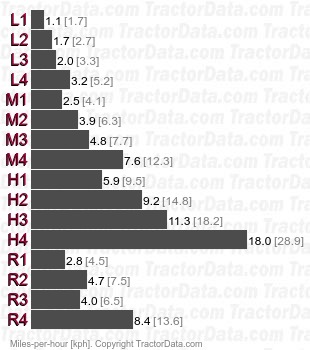

| Speeds |
|
| Transmission |
| Type | shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | 280mm dry disc
|
| Four gears (1-4) in three ranges (low, medium, high) with left-hand shuttle. |
| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 20 forward and 8 reverse
|
| Clutch | 280mm dry disc
|
| Additional two forward and one reverse creeper ranges added to the basic transmission. |

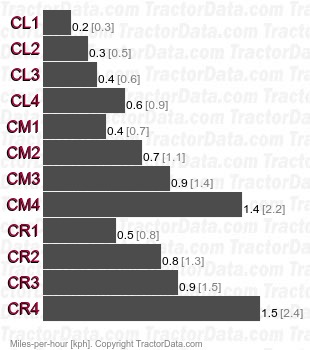

| Speeds |
|
