Fiat 1580 Transmission


Fiat 1580 tractor photo
1979 - 1984
80 Series
Row-Crop tractor
Series:138015801880
160-90
Transmissions overview
12-speed
24-speed creeper
12-speed mechanical shuttle

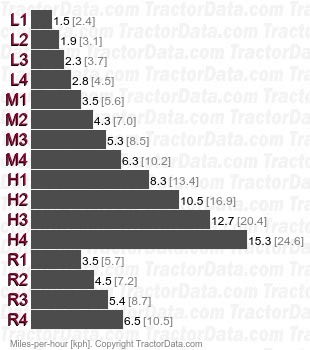

Transmission
Gears:12 forward and 4 reverse
Clutch:355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.
Transmission
Type:creeper
Gears:24 forward and 8 reverse
Clutch:355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Clutch:355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.
