Fiat 1300 Super

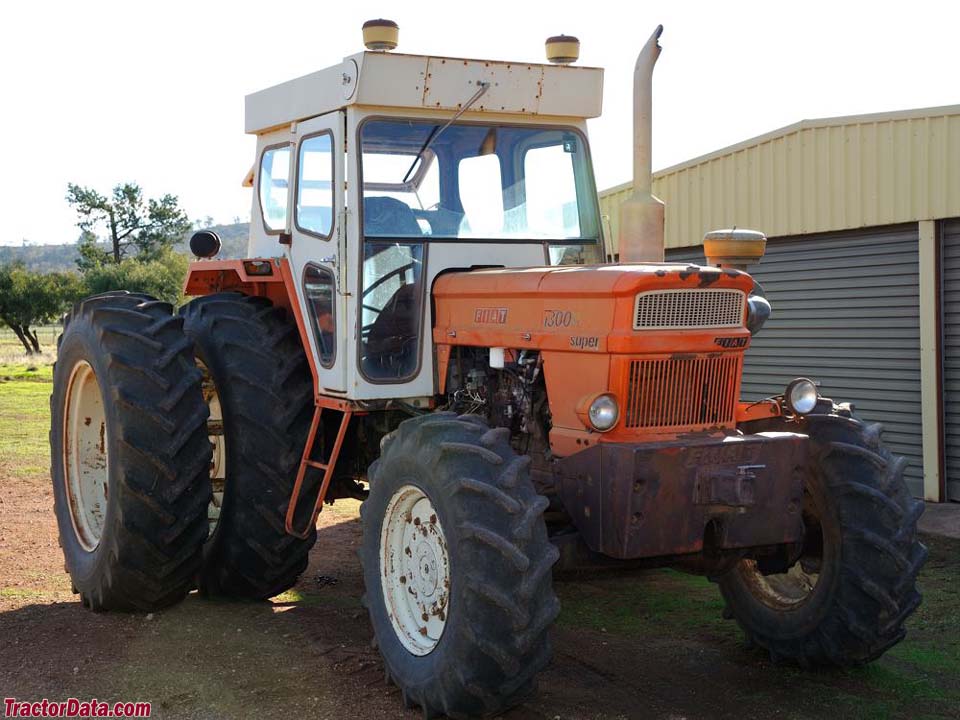

Fiat 1300 Super tractor photo
1976 - 1979
Row-Crop tractor
1300
Series:1300 Super
Production
Manufacturer:Fiat
Type:Row-Crop tractor
Fiat 1300 Super Power
Engine:150 hp
111.9 kW
Fiat 1300 Super Engine
Fiat 7.4L 6-cyl diesel
Fuel tank:52.8 gal
199.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:mechanical rear
Steering:power
Brakes:mechanical wet disc
Cab:Open operator station. Four-post ROPS and cab available.
Transmissions:12-speed
 16-speed creeper
Transmission details ...
Hydraulics
Type:open center
Pump flow:12.9 gpm
48.8 lpm
Tractor hitch
Rear Type:II
Control:position and low-link draft control
Rear lift:7386 lbs
3350 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:109 inches
276 cm
Weight:11466 lbs
5200 kg
Front tire:11.00-16
2WD Rear tire:18.4/15-38
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
