| | 1976 - 1979 |
| Row-Crop tractor |
|
Series map:
1300 Super
111.9kw
| Transmission options |
| 12-speed |
| 16-speed creeper |
| Transmission |
| Gears | 12 forward and 4 reverse
|
| Clutch | 355.6mm dry disc
|
| Four gears in three ranges, plus reverse range. |

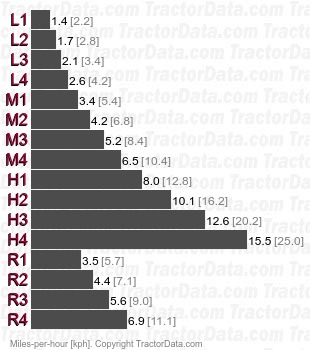

| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 16 forward and 4 reverse
|
| Clutch | 355.6mm dry disc
|
| Optional creeper adds an additional range to the transmission. |

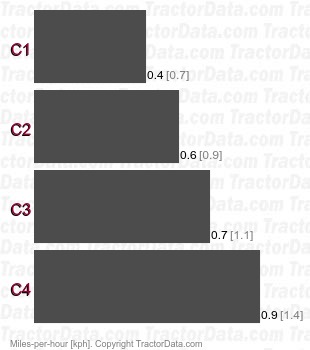

| Speeds |
|
