John Deere 5310

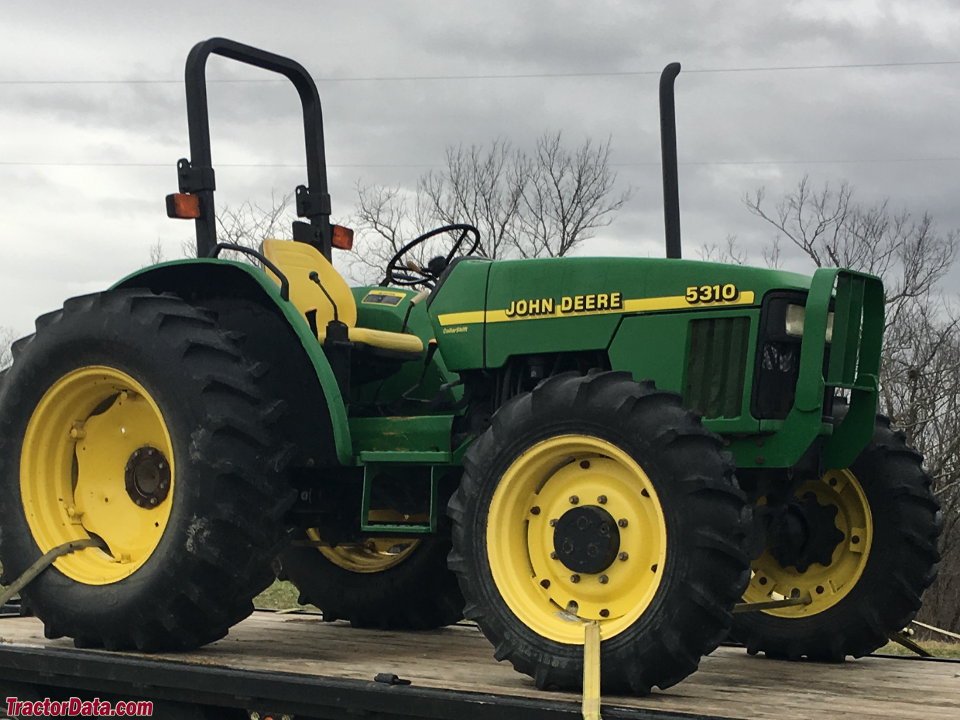

John Deere 5310 tractor photo
1998 - 2001
5000 Ten Series
Utility tractor
Series map:
5210
5310
5410
53.0hp
64.0hp
81.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price was $24,705 in 2001
Variants
5310Nnarrow profile
John Deere 5310 Engine
John Deere 2.9L 3-cyl diesel
ROPS Fuel tank18 gal
68.1 L
Cab Fuel tank23 gal
87.1 L
Engine details ...
John Deere 5310 Transmissions
9-speed unsynchronized gear
9-speed partially synchronized
12-speed power shuttle
Transmission details ...
John Deere 5310 Power
Engine64 hp
47.7 kW
PTO (claimed)55 hp
41.0 kW
PTO (tested)58.63 hp
43.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab optional.
Hydraulics
Typeopen center
Pressure2855 psi
196.9 bar
Valves5
Pump flow11.4 gpm
43.1 lpm
Total flow18.2 gpm
68.9 lpm
Steering flow6.8 gpm
25.7 lpm
Steering press.1955 psi
134.8 bar
Tractor hitch
Rear TypeI/II
Rear lift (at 24"/610mm)3,374 lbs
1530 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/540E (SyncShuttle)
Dimensions & Tires
Wheelbase80.7 inches
204 cm
Weight4350 to 5750 pounds
Front tire7.50-16
2WD Rear tire14.9-28
Full dimensions and tires ...
5310 Serial Number Location
John Deere 5310 serial number location
The tractor's serial number plate is on the right side of the frame, above the front axle.
5310 Serial Numbers
1998130000
1999230001
2000330001
2001430001

FAQ: How to read a serial number table.
Links
Temperature sensor: potential cold-start advance sensor failure leading to a no-start condition
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps40
Cab Charging amps60
Battery CCA700
Battery volts12
ROPS Battery Group28H
Cab Battery Group31
References
5310 references literature
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Golf and Turf Equipment Purchasing Guide published in 1998, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Operator's Manual 5210, 5310, 5410 and 5510 Tractors (OMRE71736) published in 1996*
New 5000 Ten Series published in 1998, by John Deere
*Publication contains known errors.
