Tractors > Kubota > L3940
      -Brand search:


    Kubota L3940

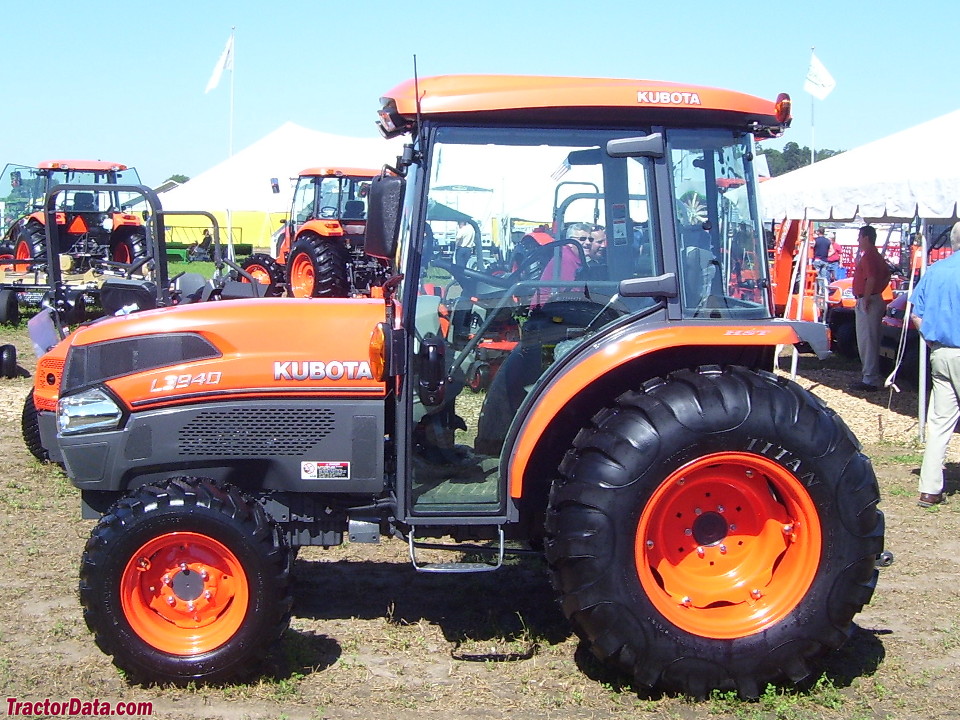

    Kubota L3940 tractor photo
    2007 - 2013   L40 Series
    Compact Utility tractor
    Previous model:Kubota L3830
    Next model:Kubota L4060
    Series next:Kubota L4240
    Series back:Kubota L3540





    The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.


    Production:

    Manufacturer:Kubota
    Original price (USD):$22,159 (2011)


    Variants:

    L3940DT:8-speed
    L3940GST:12-speed
    L3940HST:hydro
    L3940HSTC:hydro cab


    Kubota L3940 Engine:

       Kubota 2.0L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:13.2 gal [50.0 L]
    Hydraulic system:11.4 gal [43.1 L]
    Front axle:6.9 qts [6.5 L]


    3-Point Hitch:

    Rear Type:I
    Rear lift (at ends):3,860 lbs [1750 kg]
    Rear lift (at 24"/610mm):2760 lbs [1251 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:540
    Engine RPM:540@2550
    Mid PTO:semi-independent (optional)
    Mid RPM:2000


    Dimensions & Tires:

    Wheelbase:74.6 inches [189 cm]
    Weight:3483 to 3968 pounds
    Front tire:8.3-16
    Rear tire:14.9-24
    full dimensions and tires ...


    Kubota L3940 attachments:

     mowing deck
     snowblower
     blade
     front-end loader
     backhoe
    all L3940 attachments ...


    L3940 Serial Numbers:


    - Serial numbers unknown -



    Kubota L3940 Power:

    Engine (gross):40.5 hp [30.2 kW]
    Engine (net):38.5 hp [28.7 kW]
    Gear PTO (claimed):33 hp [24.6 kW]
    Hydro PTO (claimed):31.5 hp [23.5 kW]


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Differential lock:standard
    Steering:hydrostatic power steering
    Brakes:wet disc
    Cab:Two-post ROPS. Grand CAB on HSTC.


    Hydraulics:

    Type:open center
    Capacity:11.4 gal [43.1 L]
    Valves:2 to 3
    Pump flow:9.8 gpm [37.1 lpm]
    Total flow:14.7 gpm [55.6 lpm]
    Steering flow:4.9 gpm [18.5 lpm]


    Electrical:

    Ground:negative
    Charging amps:40
     55 (cab)


    Battery:

    Number:1
    Cold-cranking amps:582
    Volts:12


    Page information:
