Kubota L3940 Transmission


Kubota L3940 tractor photo
2007 - 2013
L40 Series
Compact Utility tractor
L3830
Series:L3540L3940L4240
L4060
Transmissions overview
hydrostatic
8-speed
12-speed
Transmission
Transmission:HST Plus
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Oil capacity:45.6 qts
43.2 L
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.
Speeds
L3940 HST Plus hydrostatic speeds

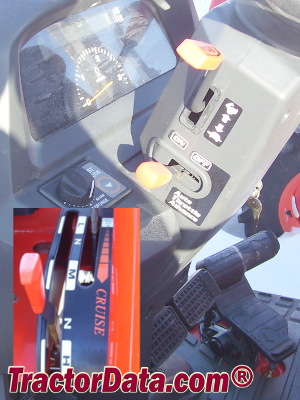

Kubota L3940 HST Plus transmission photo
Transmission
Transmission:FST sync shuttle
Gears:8 forward and reverse
Clutch:dry disc
Oil capacity:45.2 qts
42.8 L
Speeds

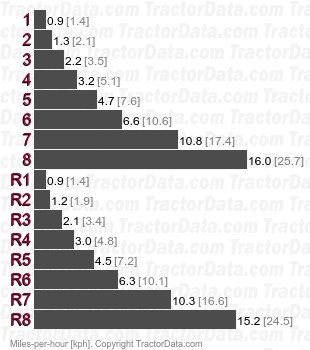

L3940 FST sync shuttle  speeds
Transmission
Transmission:Glide Shift (GST)
Gears:12 forward and 8 reverse
Speeds

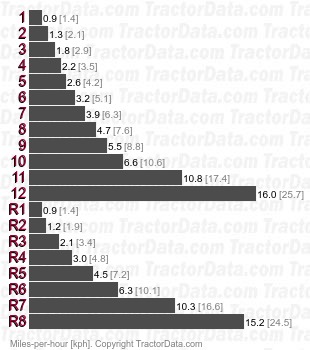

L3940 Glide Shift (GST)  speeds
