Kubota L3540 Transmission


Kubota L3540 tractor photo
2007 - 2013
L40 Series
Compact Utility tractor
Series map:
L3240
L3540
L3940
34.0hp
37.0hp
40.5hp
Transmissions overview
hydrostatic
12-speed
Transmission
TransmissionHST Plus
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.

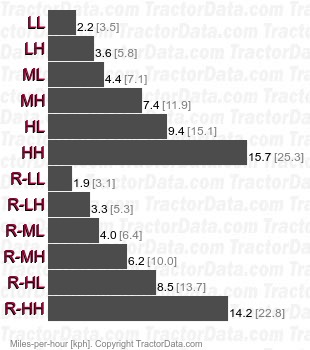

Speeds
L3540 HST Plus hydrostatic speeds

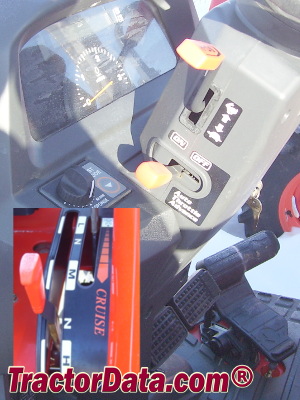

Shift Pattern
Kubota L3540 transmission controls
Transmission
TransmissionGlide Shift (GST)
Gears12 forward and 8 reverse
Oil capacity44.4 qts
42.0 L

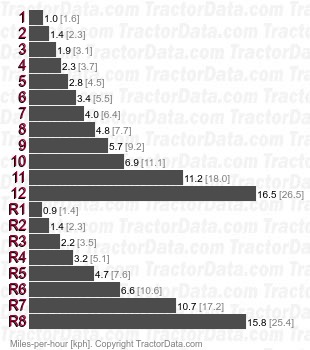

Speeds
L3540 Glide Shift (GST)  speeds
