Tractors > Zetor > 6745

Zetor 6745

Zetor 6745 tractor photo
1972 - 1978   UR1 7 Series
Next model:Zetor 6945
Series back:Zetor 5745






Production:

Manufacturer:Zetor
Factory:Brno, Czechoslovakia


Variants:

6711:2WD
6718:2WD cab
6745:4WD
6748:4WD cab


Zetor 6745 Engine:

   Zetor 3.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:18.5 gal [70.0 L]


3-Point Hitch:

Rear lift:3,858 lbs [1749 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/ground
 1000*Optional


Dimensions & Tires:

Wheelbase:88.46 inches [224 cm]
Weight:6,695 lbs [3036 kg]
Front tire:11.2-24
Rear tire:12.4-36
full dimensions and tires ...


6745 Serial Numbers:

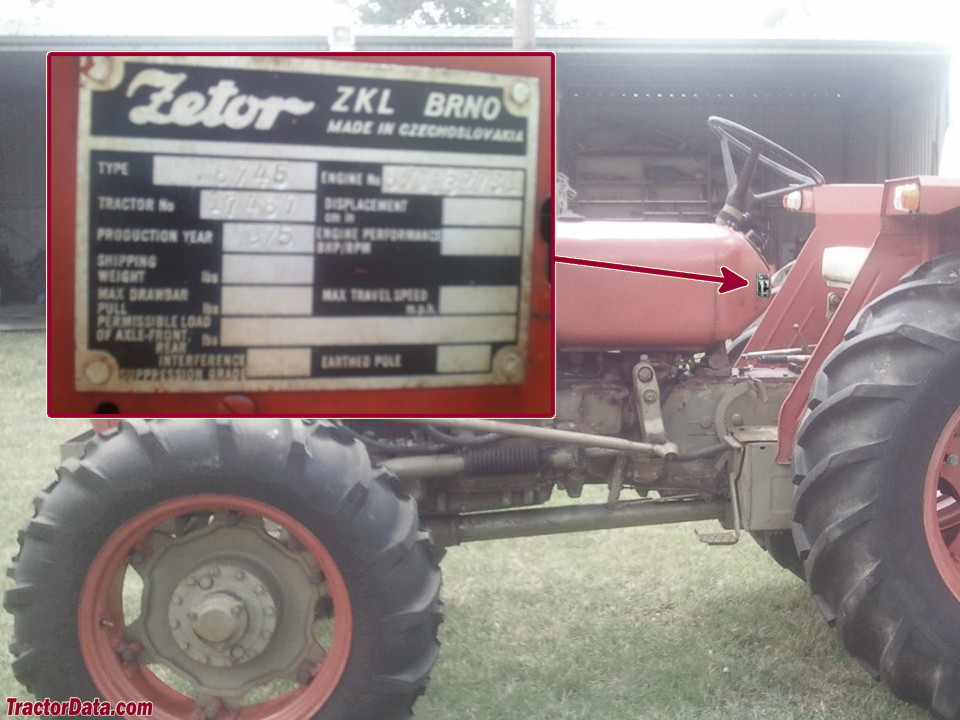

Location:Serial number plate on the left side of the Zetor 6745 dash, below the steering wheel.
photo of 6745 serial number


how to read serial numbers...



Zetor 6745 Power:

Engine:65 hp [48.5 kW]
PTO (claimed):60 hp [44.7 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Brakes:differential hydraulic drum
Trailer brakes:air optional
Cab:Open operator station.


Hydraulics:

Type:Zetormatic
Pressure:2321 psi [160.0 bar]
Valves:1
Pump flow:5.3 gpm [20.1 lpm]
