John Deere 5105 Transmission

John Deere 5105 tractor photo
2000 - 2007
5000 Advantage Series
Utility tractor
Type:partially synchronized
Gears:8 forward and 4 reverse
Clutch:dry disc
Oil capacity:34 qts
32.2 L
Controlled with foot clutch, plus range speed levers. Four speeds and two forward ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift speed or range. Reverse range to forward A-range may be shifted while tractor tractor is in motion.
With 14.9-28 rear tires.

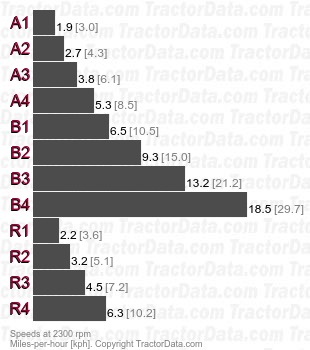

5105 SyncReverser partially synchronized speeds
