Tractors > John Deere > 5105

John Deere 5105 Engine



John Deere 5105 tractor photo
2000 - 2007
5000 Advantage Series
Utility tractor
Series map:
5105
5205
45.6hp
53.0hp
Engine Detail
John Deere 3029D
diesel
3-cylinder
liquid-cooled
Displacement179 ci
2.9 L
Bore/Stroke4.17x4.33 inches
106 x 110 mm
Power45.6 hp
34.0 kW
 50 hp (after SN 512000)
37.3 kW
Air cleanerdual dry element
Compression17.4:1
Rated RPM2300
Idle RPM825-2500
Operating RPM1400-2300
Firing order1-2-3
Starter volts12
Coolant capacity10 qts
9.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

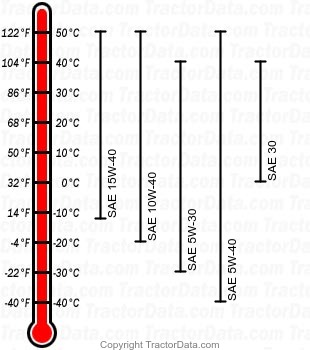

5105 diesel engine oil chart
Oil capacity7.9 qts
7.5 L
