John Deere 4520 - transmission

John Deere 4520 tractor photo
2005 - 2014   4000 Series
Model years
Compact Utility tractor
Previous model:John Deere 4710
Series next:John Deere 4720
Series back:John Deere 4320
more John Deere 4520 specifications...






Transmission:

Transmission:PowrReverser
Gears:12 forward and reverse
Oil capacity:41.2 qts [39.0 L]
Oil type:
0oF [-17oC] : Deere HY-GARD
100oF [37oC] : Low-visc HY-GARD
JDM J20C
J20D

PowrReverser uses three ranges, four gears, and a reverser to provide 12 speeds in each direction. The tractor must be stopped, and clutch depressed, to change ranges. The gear can be changed while the tractor is in motion using the clutch. The clutch is not needed to change directions with the reverser lever.

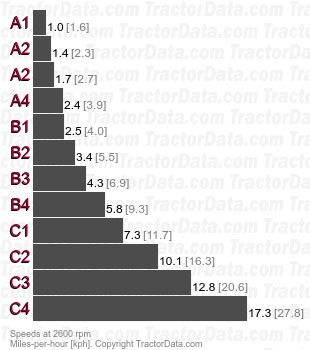

Speeds:With 13.6-28 rear tires.
4520 PowrReverser  speeds


Transmission:

Transmission:eHydro
Type:hydrostatic
Gears:infinite 3-range forward and reverse
Oil capacity:38.4 qts [36.3 L]
Oil type:
0oF [-17oC] : Deere HY-GARD
100oF [37oC] : Low-visc HY-GARD
JDM J20C
J20D

The eHydro uses a three-position range lever and two foot pedals, one for forward and one for reverse. The foot pedals must be released, and tractor stopped, to change range.

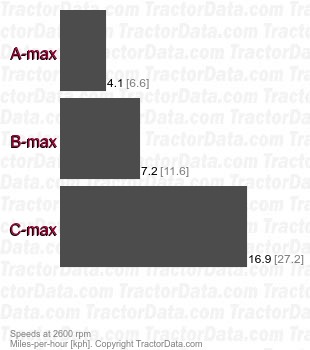

Speeds:With 16.3-28 rear tires.
4520 eHydro hydrostatic speeds
