John Deere 9120 Engine


John Deere 9120 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
9100
Series:91209220
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:496 ci
8.1 L
Bore/Stroke:4.56x5.06 inches
116 x 129 mm
Power:280 hp
208.8 kW
Air cleaner:dry
Compression:16.0:1
Rated RPM:2100
Starter volts:12
Coolant capacity:55 qts
52.1 L
Engine Oil

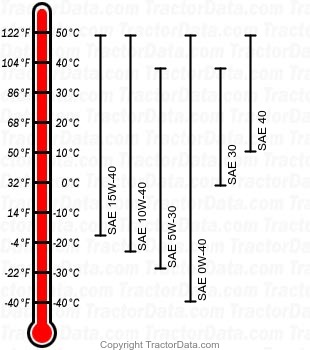

9120 diesel engine oil chart
Oil capacity:28 qts
26.5 L
