Tractors > John Deere > 9100

John Deere 9100 Engine



John Deere 9100 tractor photo
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor
Series map:
9100
9200
260.0hp
310.0hp
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement496 ci
8.1 L
Bore/Stroke4.56x5.06 inches
116 x 129 mm
Power260 hp
193.9 kW
Compression16.5:1
Rated RPM2100
Coolant capacity56 qts
53.0 L
Engine Oil

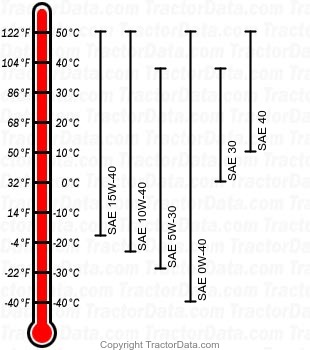

9100 diesel engine oil chart
Oil capacity32 qts
30.3 L
