John Deere 9620 Tests

John Deere 9620 tractor photo
2004 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
OCED Tractor Test 1844

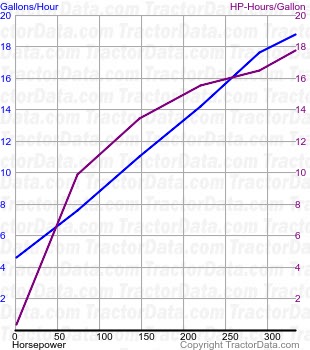

9620 fuel use from test 448
OCED Tractor Test 1844
Diesel 18-speed 4WD
November 2 - 18, 2004
Link: OCED Tractor Test 1844 file
PTO performance
Max power:376.70 hp
280.9 kW
Fuel use:21.9 gal/hour
82.9 l/hour
Power at rated engine speed:333.15 hp
248.4 kW
Fuel use:18.8 gal/hour
71.2 l/hour
Power at rated PTO speed:370.67 hp
276.4 kW
Fuel use:20.0 gal/hour
75.7 l/hour
Drawbar performance
Max power:397.47 hp
296.4 kW
Fuel use:23.9 gal/hour
90.5 l/hour
Gear 7 used for power test.
Max pull:51,197 lbs
23222 kg
Gear 1 used for pull test.
