Tractors > John Deere > 9620

John Deere 9620 Engine



John Deere 9620 tractor photo
2004 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
Series map:
9520
9620
450.0hp
500.0hp
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled
Displacement765 ci
12.5 L
Bore/Stroke5.00x6.50 inches
127 x 165 mm
Power500 hp
372.9 kW
Air cleanerdual paper elements
Compression14.7:1
Rated RPM2100
Torque1238 lb-ft
1678.7 Nm
Torque RPM1252
Starter volts12
Engine Oil

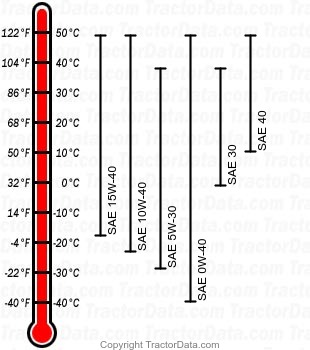

9620 diesel engine oil chart
Oil capacity44 qts
41.6 L
