John Deere 9520 Tests


John Deere 9520 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
Series:942095209620
9530
OCED Tractor Test 1805

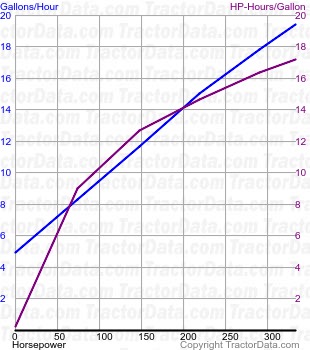

9520 fuel use from test 371
OCED Tractor Test 1805
Diesel 18-speed 4WD
May 28 - 31, 2002
Link: OCED Tractor Test 1805 file
PTO performance
Max power:370.54 hp
276.3 kW
Fuel use:19.9 gal/hour
75.3 l/hour
Power at rated engine speed:333.27 hp
248.5 kW
Fuel use:19.4 gal/hour
73.4 l/hour
Power at rated PTO speed:359.14 hp
267.8 kW
Fuel use:19.4 gal/hour
73.4 l/hour
Drawbar performance
Max power:350.08 hp
261.1 kW
Fuel use:20.9 gal/hour
79.1 l/hour
Gear 7 used for power test.
Max pull:46,160 lbs
20938 kg
Gear 14.23 used for pull test.
