Tractors > Versatile > 700

Versatile 700

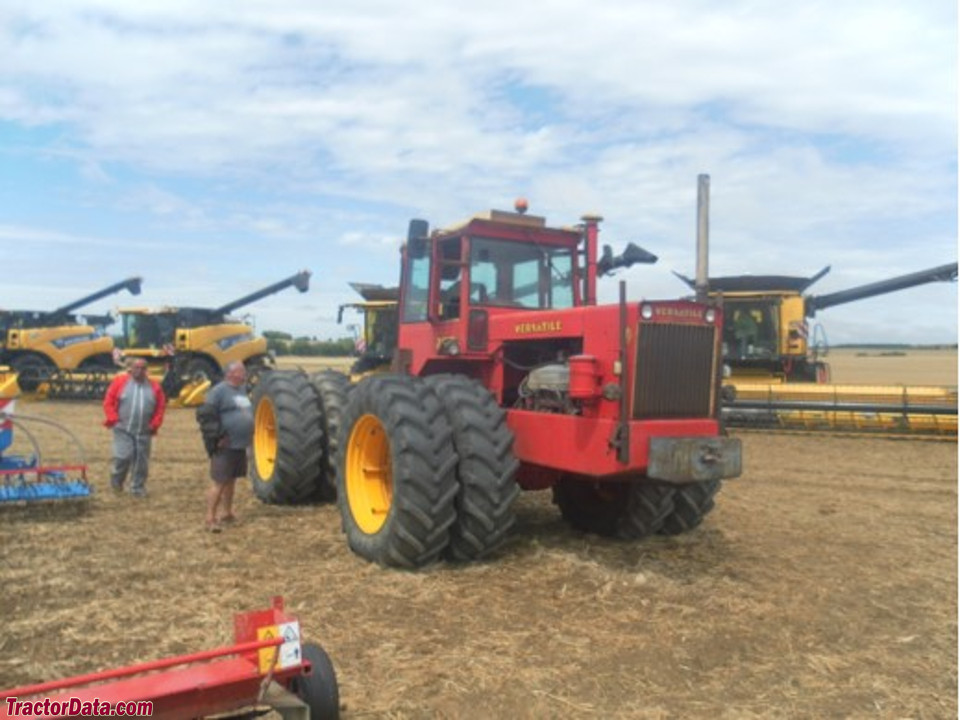

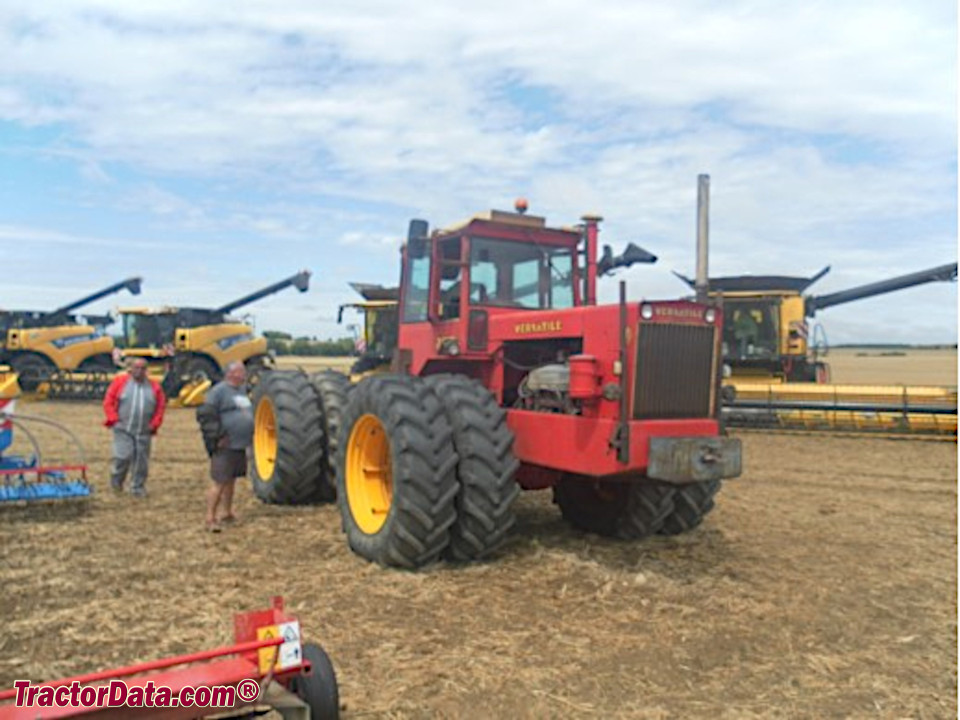

Versatile 700 tractor photo
1972 - 1977   2 Series
Four-wheel Drive (4WD) tractor
Series next:Versatile 750






Production:

Manufacturer:Versatile
Factory:Winnipeg, Manitoba, Canada
Original price (USD)
   $38,000 (1977 )


Versatile 700 Engine:

   Cummins 9.1L 8-cyl diesel
full engine details ...


Capacity:

Fuel:170 gal [643.5 L]
Hydraulic system:18.6 gal [70.4 L]


3-Point Hitch:

Rear Type:III
Control:position and depth control
Rear lift (at ends):18270 lbs [8287 kg]
Rear lift (at 24"/610mm):12370 lbs [5611 kg]


Power Take-off (PTO):

Rear RPM:1000


Dimensions & Tires:

Wheelbase:130 inches [330 cm]
Weight:17000 lbs [7711 kg]
Front tire:24.5x32
Rear tire:24.5x32
full dimensions and tires ...


700 Serial Numbers:

1972: 070077
1973: 070601
1974: 700 5010001
1975: 700 3010401
1976: 700 76 011501
1977: 700 77 013001
Final: 700 77 013250

how to read serial numbers...



Versatile 700 Power:

Engine:210 hp [156.6 kW]
Drawbar (claimed):160 hp [119.3 kW]


Mechanical:

Chassis:4x4 articulated 4WD
Final drives:planetary
Steering:articulated power
Brakes:hydraulic disc
Cab:Cab standard with available heater and air-conditioning.


Hydraulics:

Type:open center
Capacity:18.6 gal [70.4 L]
Pressure:2000 psi [137.9 bar]
Valves:3
Pump flow:23.5 gpm [88.9 lpm]
Steering flow:24 gpm [90.8 lpm]
Steering press.:1800 psi [124.1 bar]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:75


Battery:

Number:2
Volts:12
