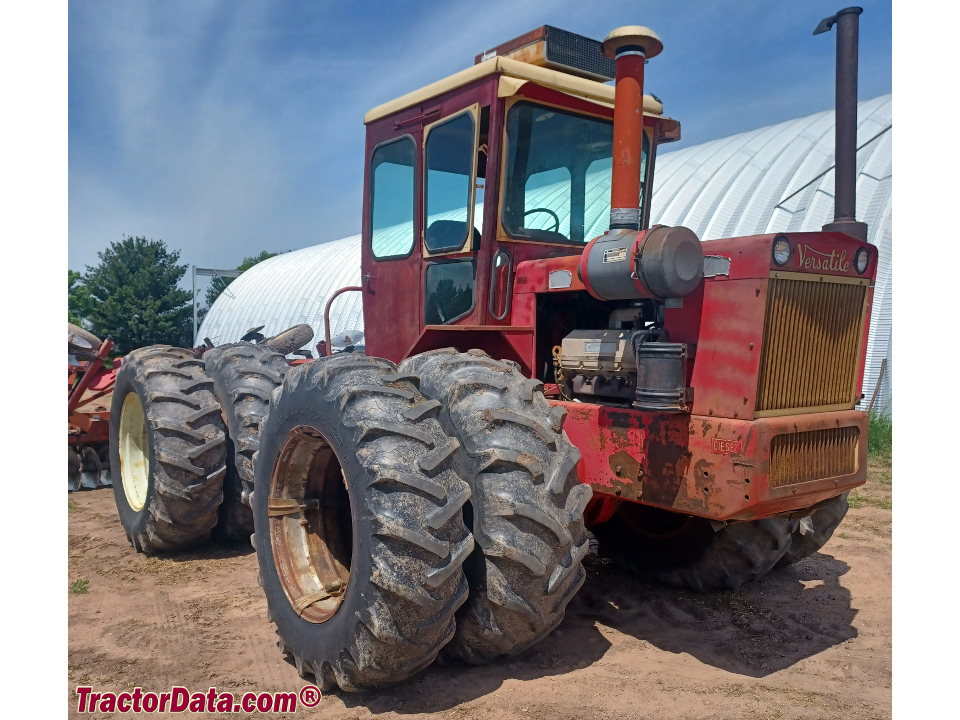

Versatile 145
| | 1967 - 1971 |
| Four-wheel Drive (4WD) tractor |
|
Series map:
125
145
165.0hp
180.0hp
| Production |
| Manufacturer | Versatile
|
| Four-wheel Drive (4WD) tractor |
| Built in Winnipeg, Manitoba, Canada |
| Original price was $17,000 in 1971 |
| Versatile 145 Power |
| Engine | 180 hp
134.2 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | planetary
|
| Articulated power steering |
| Hydraulic drum brakes |
| Open operator station. Cab optional. |
| Hydraulics |
| Type | open center
|
| Pressure | 1750 psi
120.7 bar
|
| Valves | 3
|
| Pump flow | 12.5 gpm (early)
47.3 lpm
|
| | 16.5 gpm (late)
62.5 lpm
|
| Tractor hitch |
| Rear Type | III/II
|
| Rear lift (at 24"/610mm) | 6000 lbs
2721 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 1000
|
| Engine RPM | 1000@2700
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery AH | 204
|
| References |
 |
| Models 145 - 118 - 125: Power Performance published by Versatile |
| Service Manual Models D118, G125 and D145 4 Wheel Drive Tractors published by Versatile |
