Versatile 800



Versatile 800 tractor photo
1973 - 1977
Model year
1 Series
Four-wheel Drive (4WD) tractor
Series map:
700
800
850
210.0hp
250.0hp
280.0hp
Production
ManufacturerVersatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Versatile 800 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Versatile 800 Transmission
12-speed gear
Transmission details ...
Versatile 800 Power
Engine250 hp
186.4 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Hydraulic disc brakes
Cab standard with available heater and air-conditioning.
Photos

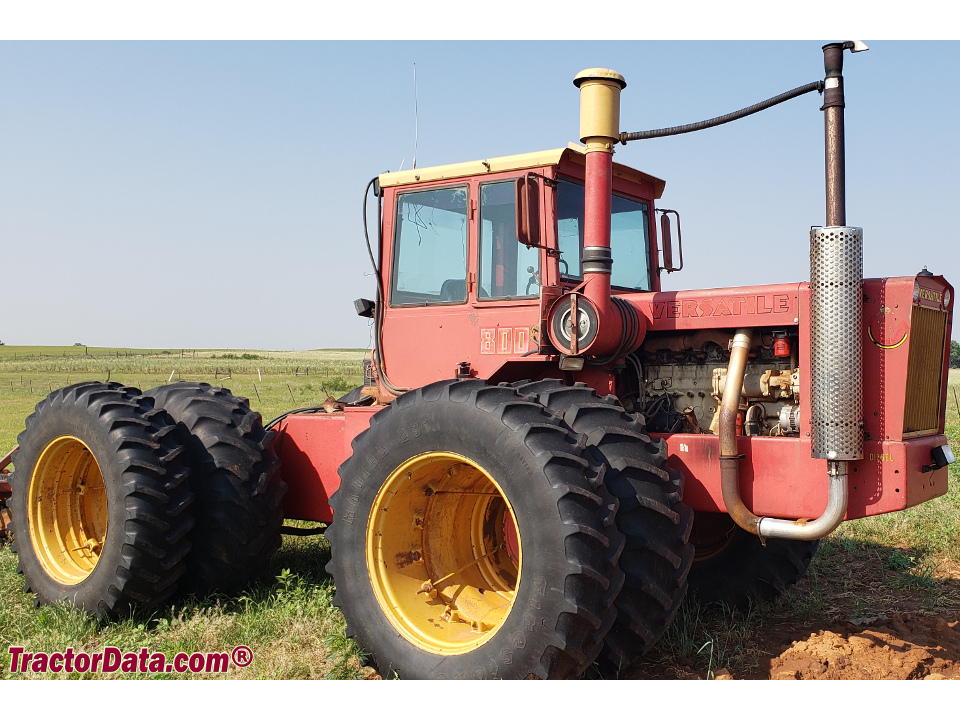

Versatile 800 (Series I) four-wheel drive tractor.
Versatile 800 photos...
Capacity
Fuel145 gal*Combined capacity of both fuel tanks.
548.8 L
Hydraulic system23.75 gal
89.9 L
Hydraulics
Typeopen center
Capacity23.75 gal
89.9 L
Pressure2000 psi
137.9 bar
Valves3
Pump flow20 gpm
75.7 lpm
Steering flow24 gpm
90.8 lpm
Steering press.1850 psi
127.6 bar
Tractor hitch
Rear TypeIII OptOptional
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight18100 lbs
8210 kg
Front tire24.5x32
Rear tire24.5x32
Full dimensions and tires ...
800 Serial Numbers
Location:Serial number plate on the front console.
1973080071
1974800 0500500
1975800 3030401
1976800 76 031601
1977800 77 032601
Final800 77 032830

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps58
Batteries2
Battery volts12
Battery AH204
References
800 references literature
Owner's Manual 800 850 (23530) published in 1974
