Kubota L3710
| | 1998 - 2002 |
| Grand L10 Series | | Compact Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Compact Utility tractor
|
| Variants |
| L3710DT: | 4WD Gear ROPS
|
| L3710GST: | 4WD Glide Shift ROPS
|
| L3710HST: | 4WD Hydro ROPS
|
| L3710HSTC: | 4WD Hydro Cab
|
| Kubota L3710 Power |
| Engine (gross): | 38.5 hp
28.7 kW
|
| Engine (net): | 36.6 hp
27.3 kW
|
| Gear PTO (claimed): | 31.5 hp
23.5 kW
|
| Hydro PTO (claimed): | 30 hp
22.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS. Cab optional.
|
| Transmissions: | 8-speed mechanical shuttle
|
| | hydrostatic
|
| | 8-speed automatic fully synchronized
|
| | 16-speed creeper
|
 Transmission details ... |
| Capacity |
| Fuel: | 9.2 gal
34.8 L
|
| Hydraulic system: | 10.3 gal
39.0 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 10.3 gal
39.0 L
|
| Pump flow: | 7.8 gpm
29.5 lpm
|
| Steering flow: | 4.1 gpm
15.5 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position control and optional draft control
|
| Rear lift (at 24"/610mm): | 2,310 lbs
1047 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | semi-independent (L3710HST)
|
| Mid RPM: | 2000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40 (ROPS)
|
| | 55 (cab)
|
| Battery CCA: | 582
|
| Battery volts: | 12
|
| Page information |
| Last update: | October 3, 2019
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

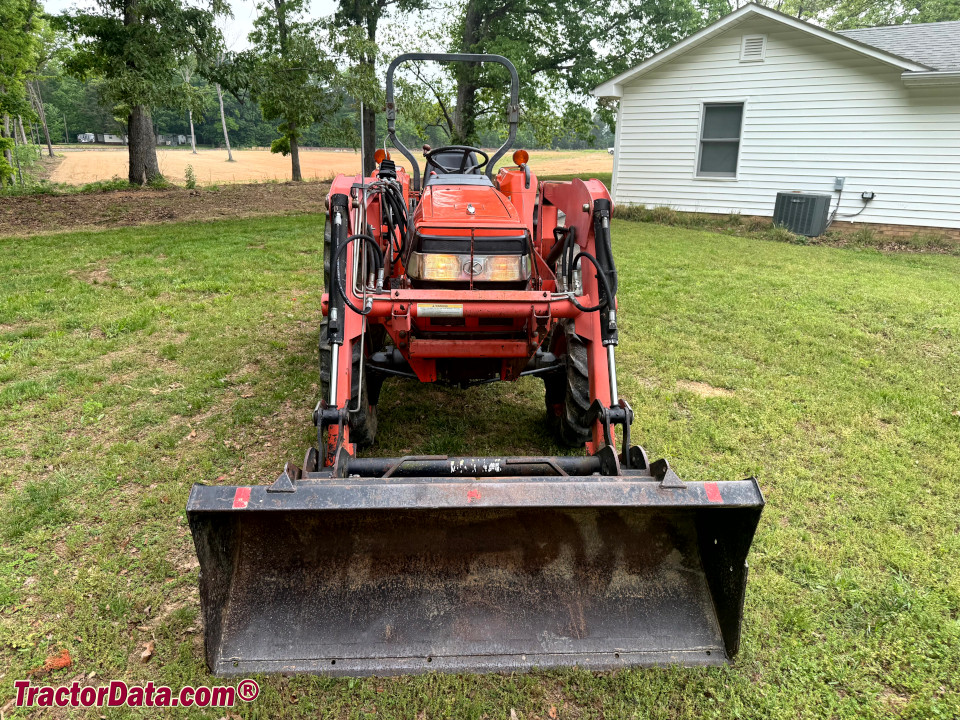

Kubota L3710 photos...
