CaseIH 9350

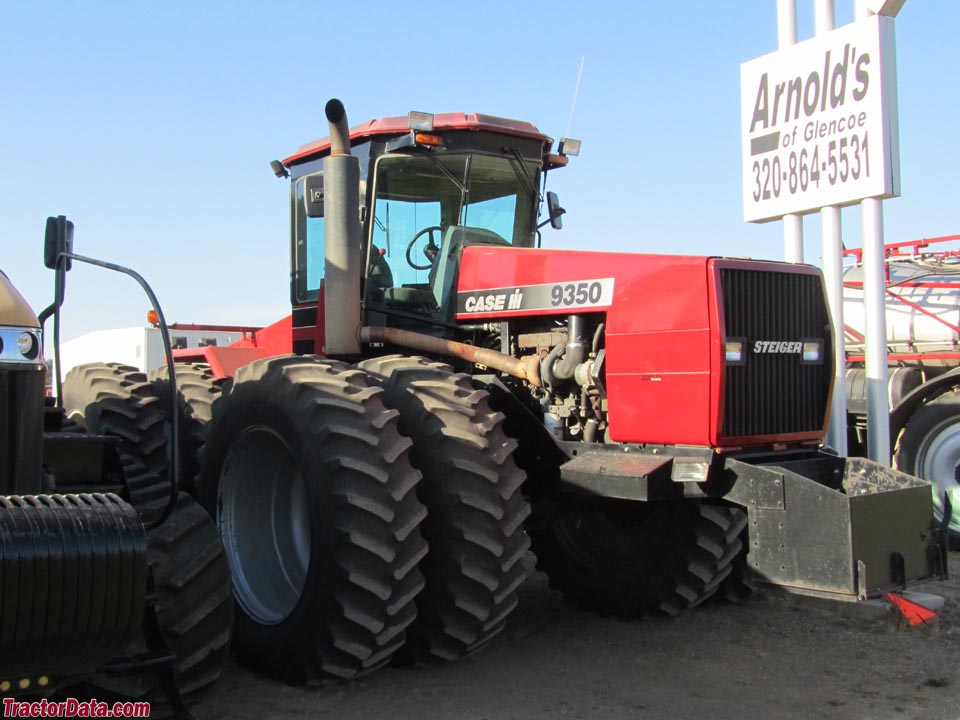

CaseIH 9350 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9330
9350
9370
240.0hp
310.0hp
360.0hp
Production
ManufacturerCaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $125,000 in 1999
CaseIH 9350 Engine
Cummins 10.8L 6-cyl diesel
Fuel tank200 gal
757.0 L
Engine details ...
CaseIH 9350 Transmissions
12-speed full power shift
12-speed synchronized
24-speed two-speed power shift
Transmission details ...
CaseIH 9350 Power
Engine (gross)310 hp
231.2 kW
PTO (claimed)266 hp
198.4 kW
Drawbar (tested)246.21 hp
183.6 kW
PTO (tested)284.25 hp
212.0 kW
Performance test details ...
Mechanical
Four-wheel drive
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.
Hydraulics
Typeclosed center
Pressure2900 psi
200.0 bar
Valves4
Pump flow27 gpm (Power shift)
102.2 lpm
 30 gpm (Synchro shift)
113.6 lpm
Tractor hitch
Rear TypeIII
Rear lift (at 24"/610mm)14000 lbs
6350 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
Dimensions & Tires
Wheelbase137 inches (row-crop)
347 cm
 131 inches (fixed)
332 cm
Weight28720 to 29600 pounds
Front tire20.8R-38
Rear tire20.8R-38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps125
Batteries3
Battery CCA625
Battery volts12
References
9350 references literature
Steiger 9300 Series 4WDs published in 1996, by CaseIH
Product Insight: 9300 STEIGER vs. Agcostar 8360 & 8425 published in 1996
