Tractors > CaseIH > 7240

CaseIH 7240 - transmission

CaseIH 7240 tractor photo
1994 - 1996   Magnum 7200 Series
Row-Crop tractor
Previous model:CaseIH 7140
Next model:CaseIH 8940
Series next:CaseIH 7250
Series back:CaseIH 7230
more CaseIH 7240 specifications...






Transmission:

Type:full power shift
Gears:18 forward and 4 reverse
Clutch:hydraulic wet disc
Speeds:
7240  full power shift speeds
CaseIH 7240  transmission photo



Transmission:

Type:creeper
Gears:24 forward and 6 reverse
Speeds:

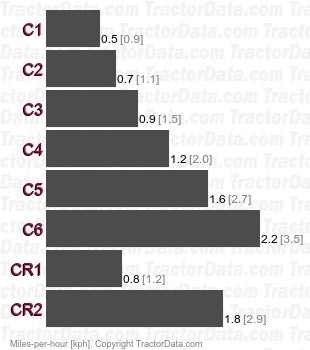

7240  creeper speeds
