Tractors > CaseIH > 7240

CaseIH 7240 Tests



CaseIH 7240 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7230
7240
7250
188.9hp*
216.7hp*
238.9hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1711

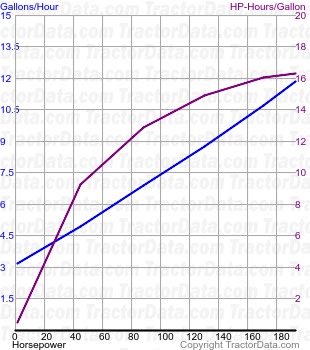

7240 fuel use from test 206
OCED Tractor Test 1711
Diesel 18-speed 4WD
May 3 - 15, 1996
Link: OCED Tractor Test 1711 file
PTO performance
Max power219.05 hp
163.3 kW
Fuel use11.9 gal/hour
45.0 l/hour
Power at rated engine speed196.62 hp
146.6 kW
Fuel use11.8 gal/hour
44.7 l/hour
Drawbar performance
Max power167.00 hp
124.5 kW
Fuel use11.8 gal/hour
44.7 l/hour
Gear 8 used for power test.
Max pull17456 lbs
7918 kg
Gear 5 used for pull test.
