CaseIH 2394 Transmission


CaseIH 2394 tractor photo
1984 - 1988
Row-Crop tractor
Series map:
2294
2394
2594
154.0hp
197.0hp
217.0hp

Note: the CaseIH model 2394 is the same as the J.I. Case 2394. The following data is from the 2394 listing.
Transmissions overview
12-speed three-speed power shift
24-speed four-speed power shift
Transmission
Typethree-speed power shift
Gears12 forward and 3 reverse
Oil capacity128 qts
121.1 L
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
Speeds
With 18.4x38 rear tires.

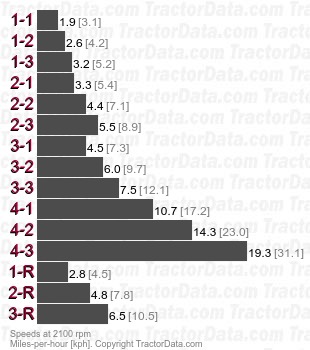

2394  three-speed power shift speeds
Transmission
Typefour-speed power shift
Gears24 forward and 3 reverse
Clutchhydraulic wet disc
Oil capacity128 qts
121.1 L
Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.
Speeds
With 18.4x38 rear tires.
2394  four-speed power shift speeds
Shift Pattern

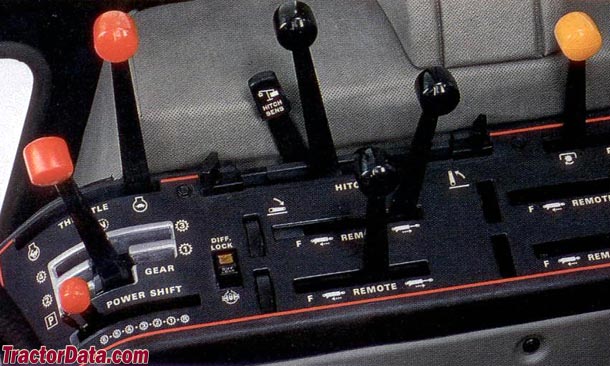

CaseIH 2394 transmission controls
