CaseIH 485

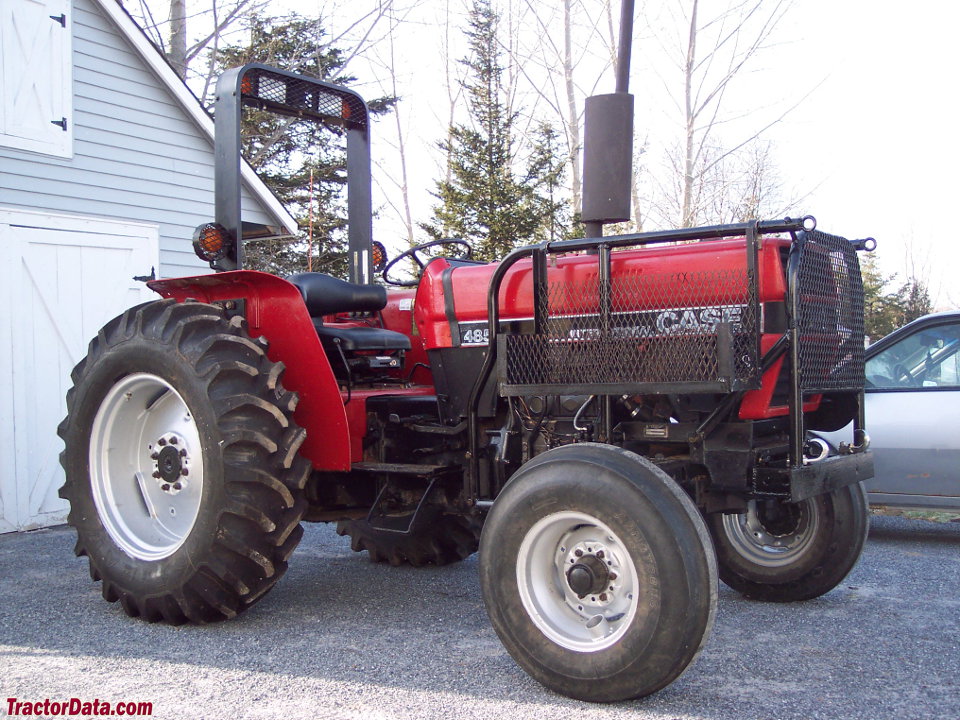

CaseIH 485 tractor photo
1985 - 1991
85 Utility Series
Utility tractor
483
Series:385485585
495
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
Original price:$16,000 (1990)
Variants
485:utility
485-O:orchard
CaseIH 485 Power
Engine:53 hp
39.5 kW
Drawbar (claimed):36.7 hp
27.4 kW
PTO (claimed):43 hp
32.1 kW
CaseIH 485 Engine
CaseIH 2.9L 3-cyl diesel
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Cab:Two-post ROPS.
Transmissions:8-speed synchromesh
 16-speed partial power shift
Transmission details ...
Capacity
Fuel:20 gal
75.7 L
Hydraulic system:9 gal
34.1 L
Hydraulics
Type:open center
Capacity:9 gal
34.1 L
Valves:1 or 2
Pump flow:15.9 gpm
60.2 lpm
 17 gpm
64.3 lpm (optional)
Tractor hitch
Rear Type:I,II
Rear lift:2,338 lbs
1060 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:79.6 inches
202 cm
Weight:5,200 lbs
2358 kg
Front tire:6.00-16
Rear tire:13.6-28
Full dimensions and tires ...
485 Serial Numbers
Location:Near front axle on right.
photo of 485 serial number

1985:15000
1986:18000
1987:19057
1988:21250
1989:23490
1990:24938
1991:26386

how to read serial numbers...

Electrical
Charging system:alternator
Charging amps:45
