Tractors > CaseIH > MX270 Magnum

CaseIH MX270 Magnum Tests



CaseIH MX270 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
Series map:
MX240
MX270
227.8hp*
261.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1761

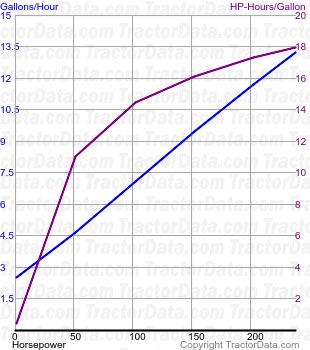

MX270 Magnum fuel use from test 1761
Nebraska Tractor Test 1761
Diesel 18-speed 4WD
April 15 - 24, 1999
Link: Nebraska Tractor Test 1761 file
PTO performance
Max power270.93 hp
202.0 kW
Fuel use14.8 gal/hour
56.0 l/hour
Power at rated engine speed237.53 hp
177.1 kW
Fuel use13.2 gal/hour
50.0 l/hour
Power at rated PTO speed243.18 hp
181.3 kW
Fuel use13.5 gal/hour
51.1 l/hour
Drawbar performance
Max power207.01 hp
154.4 kW
Fuel use13.2 gal/hour
50.0 l/hour
Gear 7 used for power test.
Max pull21,665 lbs
9827 kg
Gear 5 used for pull test.
