Tractors > CaseIH > 8950

CaseIH 8950 Tests



CaseIH 8950 tractor photo
1997 - 1998
Magnum 8900 Series
Row-Crop tractor
Series map:
8940
8950
227.8hp*
250.0hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1737

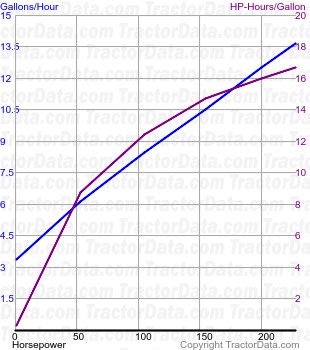

8950 fuel use from test 237
OCED Tractor Test 1737
Diesel 18-speed 4WD
September 18 - October 1, 1997
Link: OCED Tractor Test 1737 file
PTO performance
Max power255.18 hp
190.3 kW
Fuel use14.3 gal/hour
54.1 l/hour
Power at rated engine speed227.12 hp
169.4 kW
Fuel use13.6 gal/hour
51.5 l/hour
Drawbar performance
Max power195.89 hp
146.1 kW
Fuel use13.7 gal/hour
51.9 l/hour
Gear 7 used for power test.
Max pull18766 lbs
8512 kg
Gear 6 used for pull test.
